FX30 - (1/02-) Transmission

Key

Ref	Description
1	SLOTTED NUT
2	PLATE
3	BEARING ASSY,45 mm ID x 85 mm OD x 32 mm
4	BOLT,Hex, M10 x 30, 8.8, Full Thd
5	SHAFT
6	OIL SEAL
7	O-RING,74.5mm ID x 3mm Width
8	SHIM,0.05mm Thk
8	SHIM,0.2mm Thk
8	SHIM,0.5mm Thk
9	FLANGE
10	BELLEVILLE WASHER,M10
11	SCREW
12	FLANGE
12	FLANGE
13	WHEEL BOLT
13	WHEEL BOLT
14	OIL SEAL
14	SEAL
15	BEARING ASSY
15	BEARING ASSY,100 mm ID x 180 mm OD x 49 mm
16	SPACER
16	BUSHING
17	GEAR
17	GEAR
18	SNAP RING,M90, Ext
19	ROLLER BEARING,80 mm ID x 140 mm OD x 35.25 mm
20	SHIM,0.05mm Thk
20	SHIM,0.2mm Thk
20	SHIM,0.5mm Thk
21	WASHER
22	WHEEL NUT

MalpasDirect - Replacement Tractors Parts

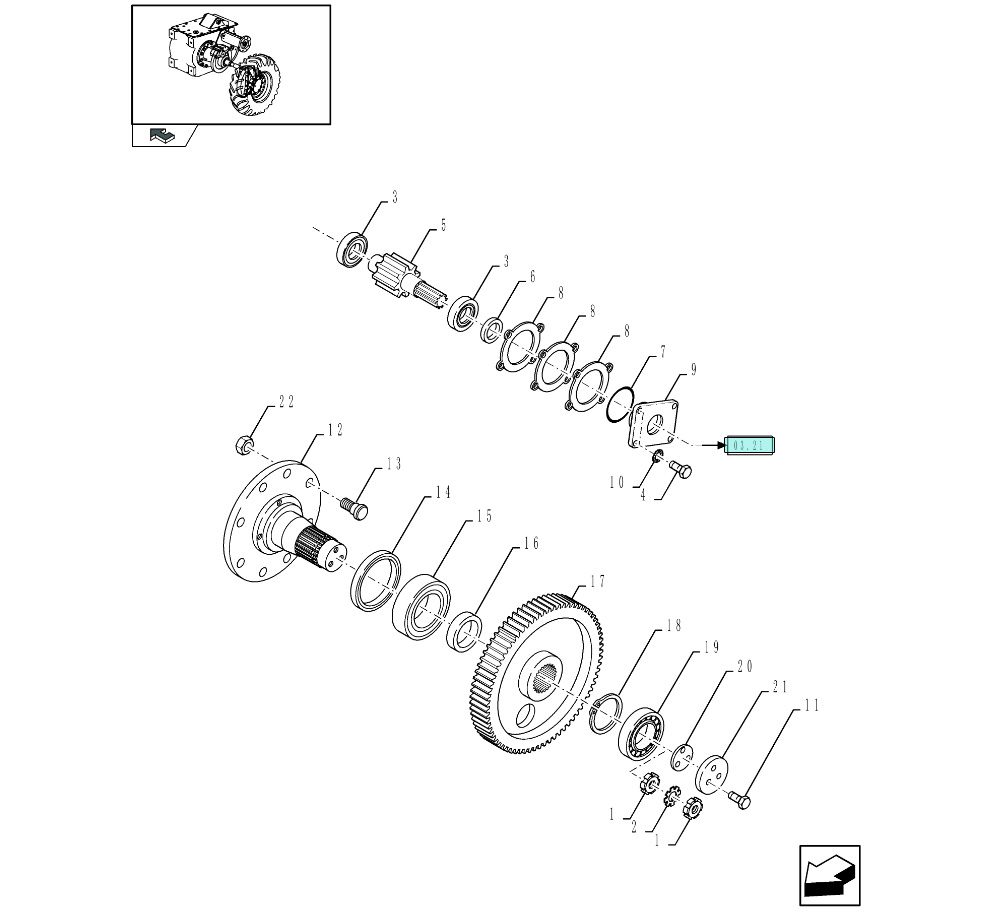

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Transmission /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	9811129 SLOTTED NUT for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9838325 PLATE for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9832269 BEARING ASSY,45 mm ID x 85 mm OD x 32 mm for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
5	9832292 SHAFT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	381860 OIL SEAL for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	381895 O-RING,74.5mm ID x 3mm Width for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	382948 SHIM,0.05mm Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	382949 SHIM,0.2mm Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	382950 SHIM,0.5mm Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9833631 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
11	84443546 SCREW for FX28/30/38/40/48/50/58/60 M16 x 35,FOR FX30 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84817058 FLANGE - this part has been superceded by 9510170 FOR FX30 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9818675 FLANGE for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	87282493 WHEEL BOLT (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	330291 WHEEL BOLT - this part has been superceded by 87282493 (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	381856 OIL SEAL for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9832264 SEAL for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	384142 BEARING ASSY for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9832271 BEARING ASSY,100 mm ID x 180 mm OD x 49 mm for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	922092 SPACER for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9832274 BUSHING for all New Holland FX Forager Harvesters models FOR FX40-50-60 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9502657 GEAR - this part has been superceded by 84818374 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84818374 GEAR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	300639 SNAP RING,M90, Ext for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	9832270 ROLLER BEARING,80 mm ID x 140 mm OD x 35.25 mm for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	395391 SHIM,0.05mm Thk for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
20	395392 SHIM,0.2mm Thk for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
20	395393 SHIM,0.5mm Thk for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
21	382503 WASHER for all New Holland FX Forager Harvesters models FOR FX30 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	748961 WHEEL NUT for all New Holland FX Forager Harvesters models M22 x 1.5 (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
				Add
