FX30 - (1/02-) Electrical System

Key

Ref	Description
1	ELEC CONNECTOR
2	ELEC CONNECTOR,Female
2	ELEC CONNECTOR,3 Pole
2	ELEC CONNECTOR
2	ELEC CONNECTOR
2	ELEC CONNECTOR,Female
2	ELEC CONNECTOR,Female , 8 Pole
3	WIRE CONNECTOR,25 Pole
4	ELEC CONNECTOR,Male, 8 Pole
4	ELEC CONNECTOR,Male, 4 Pole
4	ELEC CONNECTOR,Male
5	ELEC CONNECTOR,0.5 - 1.5 mm2
6	TERMINAL,Female, 1 - 2.5 mm2
7	ELEC CONNECTOR
7	HYD CONNECTOR
8	TERMINAL,2 - 3 mm2
8	TERMINAL,0.5 - 1.5 mm2
8	TERMINAL,0.5 - 1.5 mm2
9	CAP COVER
9	CAP COVER
9	CAP COVER

MalpasDirect - Replacement Tractors Parts

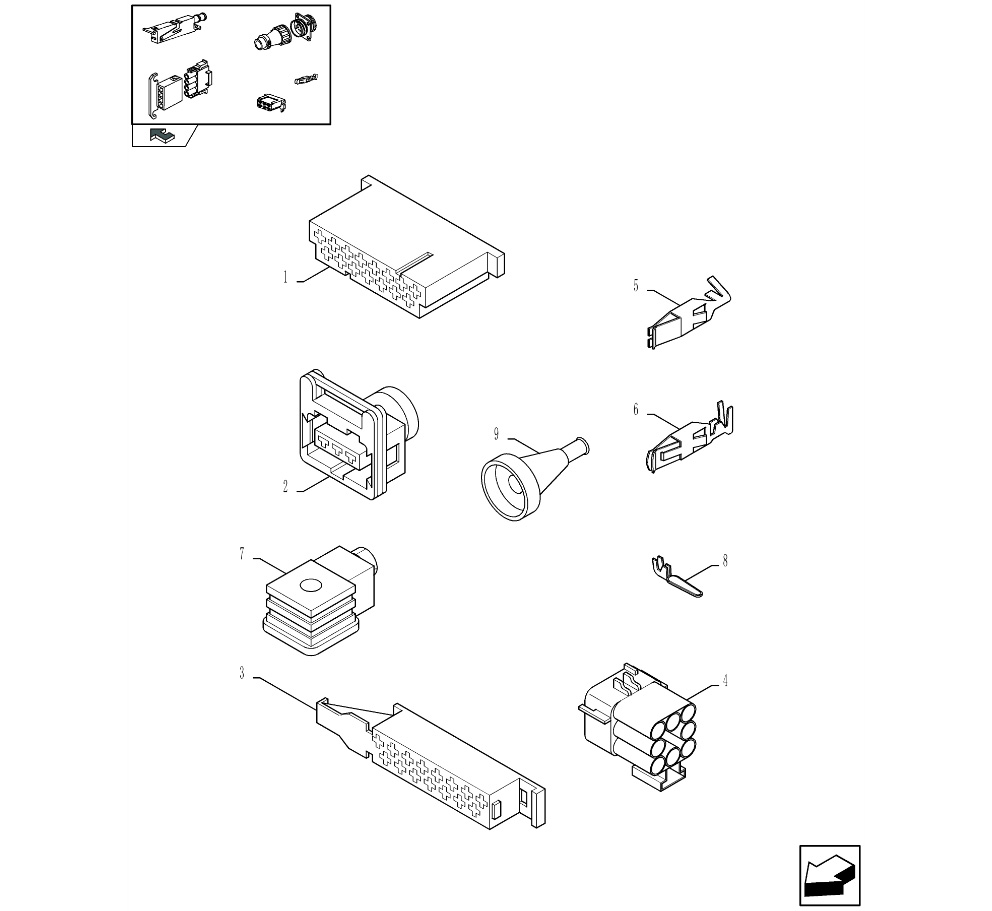

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	9811261 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 15-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84018969 ELEC CONNECTOR,Female for all New Holland FX Forager Harvesters models 4-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9850554 ELEC CONNECTOR,3 Pole for all New Holland FX Forager Harvesters models 3-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9850555 ELEC CONNECTOR - this part has been superceded by 87690976 2-BK-F, Male (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	87690976 ELEC CONNECTOR 2-BK-F, Male (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84018967 ELEC CONNECTOR,Female for all New Holland FX Forager Harvesters models 2-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
2	84018971 ELEC CONNECTOR,Female , 8 Pole for all New Holland FX Forager Harvesters models 8-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9510666 WIRE CONNECTOR,25 Pole for all New Holland FX Forager Harvesters models 25-BK (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84018972 ELEC CONNECTOR,Male, 8 Pole for all New Holland FX Forager Harvesters models 8-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
4	84018970 ELEC CONNECTOR,Male, 4 Pole for all New Holland FX Forager Harvesters models 4-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84018968 ELEC CONNECTOR,Male for all New Holland FX Forager Harvesters models 2-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
5	9815256 ELEC CONNECTOR,0.5 - 1.5 mm2 for all New Holland FX Forager Harvesters models F 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	9813989 TERMINAL,Female, 1 - 2.5 mm2 - this part has been superceded by 87705596 F 1-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
7	84019407 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 4-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84019408 HYD CONNECTOR for all New Holland FX Forager Harvesters models 14-A-H (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84018981 TERMINAL,2 - 3 mm2 for all New Holland FX Forager Harvesters models M 2.00-3.00 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
8	87694674 TERMINAL,0.5 - 1.5 mm2 M 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84018979 TERMINAL,0.5 - 1.5 mm2 - this part has been superceded by 87694674 M 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9850832 CAP COVER for FX28/30/38/40/48/50/58/60 2 POL (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	89850833 CAP COVER for FX28/30/38/40/48/50/58/60 3 POL (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9850869 CAP COVER for FX28/30/38/40/48/50/58/60 4 POL (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
