FX30 - (1/02-) Electrical System

Key

Ref	Description
1	ELEC CONNECTOR,Female, 2 Pin
2	ELEC CONNECTOR,Female, 1 Pole
2	ELEC CONNECTOR,Female, 1 Pole (pack of 5)
3	TERMINAL,Female, 0.75 - 2 mm2
3	TERMINAL
3	TERMINAL,Female, 2.5 - 4 mm2
3	TERMINAL,4 - 6 mm2
3	TERMINAL,4 - 6 mm2
4	WIRE CONNECTOR
5	TERMINAL,1 - 2.5 mm2
5	ELEC CONNECTOR,0.5 - 1.5 mm2
6	TERMINAL
7	TERMINAL,1 - 2 mm2
8	TERMINAL
9	TERMINAL,Female, 5 Pole
10	WIRE CONNECTOR
11	ELEC CONNECTOR,Male

MalpasDirect - Replacement Tractors Parts

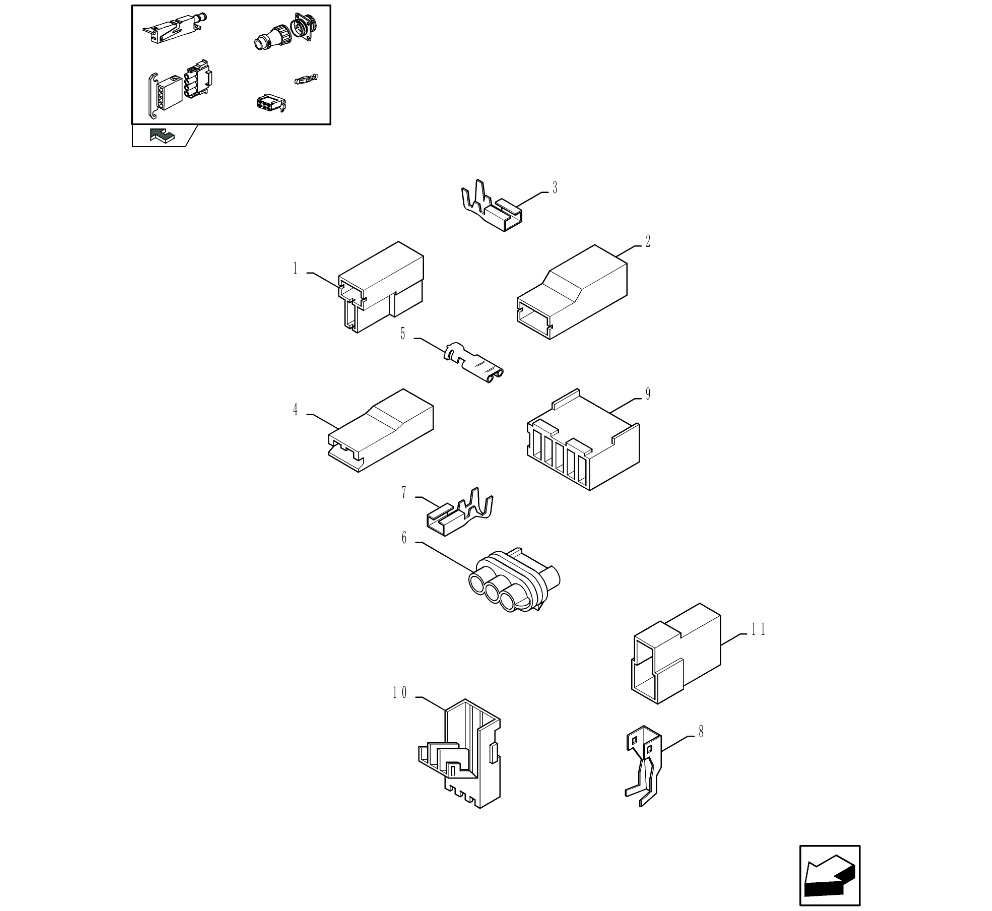

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	446133 ELEC CONNECTOR,Female, 2 Pin for all New Holland FX Forager Harvesters models 2-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	441159 ELEC CONNECTOR,Female, 1 Pole - this part has been superceded by 87675193 1-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	87675193 ELEC CONNECTOR,Female, 1 Pole (pack of 5) 1-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	441166 TERMINAL,Female, 0.75 - 2 mm2 for all New Holland FX Forager Harvesters models M 0.7-2 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	84449722 TERMINAL for FX30/40/50/60 F 1 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	441167 TERMINAL,Female, 2.5 - 4 mm2 for all New Holland FX Forager Harvesters models F 2.5-4 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	80919415 TERMINAL,4 - 6 mm2 for all New Holland FX Forager Harvesters models M 4-6 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	919415 TERMINAL,4 - 6 mm2 - this part has been superceded by 80919415 M 4-6 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	350674 WIRE CONNECTOR - this part has been superceded by 87705140 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	430026 TERMINAL,1 - 2.5 mm2 for all New Holland FX Forager Harvesters models 1-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	84018980 ELEC CONNECTOR,0.5 - 1.5 mm2 for all New Holland FX Forager Harvesters models 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84000181 TERMINAL for all New Holland FX Forager Harvesters models 3-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84000182 TERMINAL,1 - 2 mm2 for all New Holland FX Forager Harvesters models 1-2 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	84007052 TERMINAL for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84007631 TERMINAL,Female, 5 Pole for all New Holland FX Forager Harvesters models 5-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84007053 WIRE CONNECTOR for all New Holland FX Forager Harvesters models 3-BK (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84038366 ELEC CONNECTOR,Male for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
				Add
