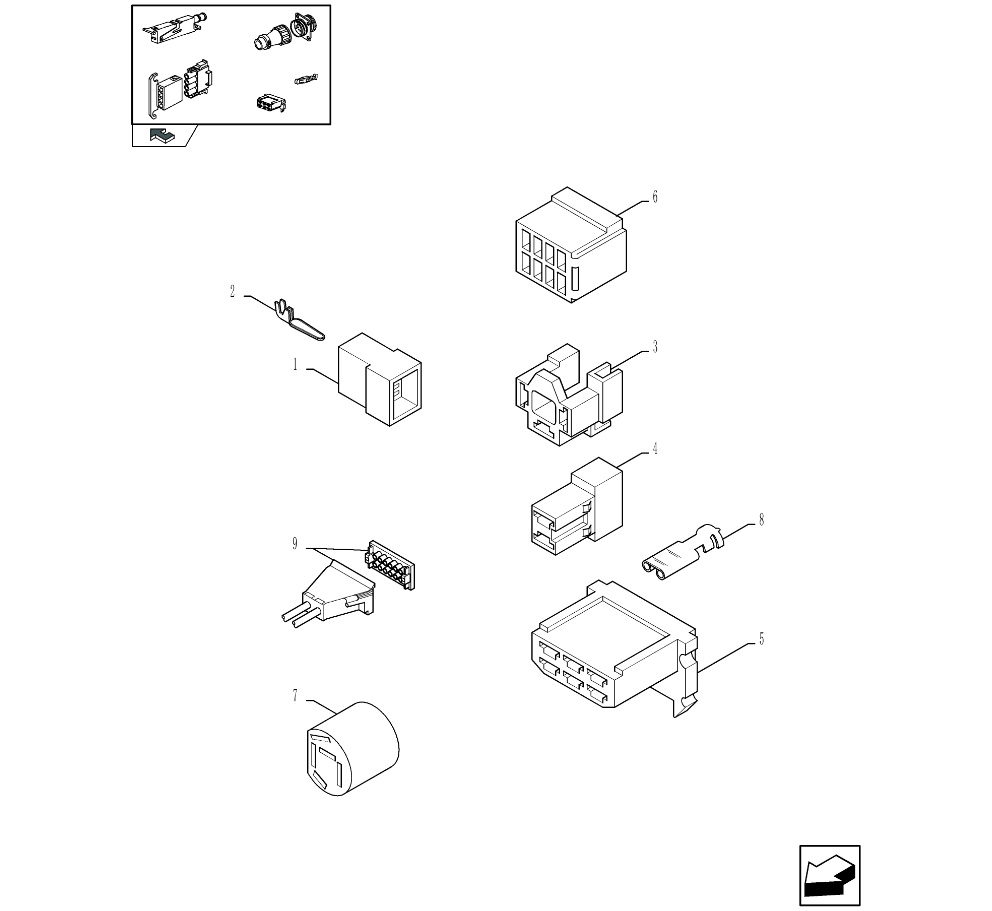

FX30 - (1/02-) Electrical System

Key

Ref	Description
1	WIRE CONNECTOR,Male
1	WIRE CONNECTOR,Male
2	TERMINAL,Male, 0.75 - 2 mm2
3	TERMINAL,Female, 3 Pole
4	MULTIPOLE CONNECTOR
4	MULTIPOLE CONNECTOR
4	ELEC CONNECTOR,Female
4	ELEC CONNECTOR,Female
4	ELEC CONNECTOR,Female
5	TERMINAL,Female, 6 Pin
5	TERMINAL,Female, 6 Pin
6	ELEC CONNECTOR
6	ELEC CONNECTOR
6	ELEC CONNECTOR
6	ELEC CONNECTOR
6	ELEC CONNECTOR
7	TERMINAL
8	TERMINAL,1 - 2.5 mm2
8	TERMINAL,4 - 6 mm2
8	TERMINAL
9	ELEC CONNECTOR
9	ELEC CONNECTOR

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	334699 WIRE CONNECTOR,Male - this part has been superceded by 87680401 2-WH-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	87680401 WIRE CONNECTOR,Male 2-WH-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	334724 TERMINAL,Male, 0.75 - 2 mm2 for all New Holland FX Forager Harvesters models M 0.8-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	751307 TERMINAL,Female, 3 Pole for all New Holland FX Forager Harvesters models 2-CL-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	334589 MULTIPOLE CONNECTOR - this part has been superceded by 87680382 1-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	87680382 MULTIPOLE CONNECTOR 1-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	87680259 ELEC CONNECTOR,Female 2-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	334698 ELEC CONNECTOR,Female - this part has been superceded by 87680259 2-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84015523 ELEC CONNECTOR,Female for all New Holland FX Forager Harvesters models F-2WT-V (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	87709659 TERMINAL,Female, 6 Pin 6-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	334595 TERMINAL,Female, 6 Pin - this part has been superceded by 87709659 6-WH-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	42046995 ELEC CONNECTOR - this part has been superceded by 42046995 8-BL-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	87717631 ELEC CONNECTOR - this part has been superceded by 42046995 8-BL-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	9503638 ELEC CONNECTOR - this part has been superceded by 42046995 8-BL-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	9503639 ELEC CONNECTOR - this part has been superceded by 84146684 2-BL-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84146684 ELEC CONNECTOR 2-BL-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9850818 TERMINAL for all New Holland FX Forager Harvesters models 5-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	334588 TERMINAL,1 - 2.5 mm2 for all New Holland FX Forager Harvesters models F 1.0-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	334594 TERMINAL,4 - 6 mm2 - this part has been superceded by 87680642 F 4-6 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
8	751308 TERMINAL for all New Holland FX Forager Harvesters models F, Flag type (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84018931 ELEC CONNECTOR for all New Holland FX Forager Harvesters models P12 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84018933 ELEC CONNECTOR for all New Holland FX Forager Harvesters models T17 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
				Add
