FX30 - (1/02-) Electrical System

Key

Ref	Description
1	SUPPORT
2	NUT,M8, Cl 8
3	BELLEVILLE WASHER,M8
4	BOLT,Hex, M8 x 40, 8.8, Full Thd
5	BOLT,Hex, M12 x 120, 8.8
6	NUT,M12 x 1.75, Cl 8
7	SUPPORT
8	BOLT,Hex, M10 x 70, 8.8
9	SUPPORT
10	NUT,M10 x 1.5, Cl 8
11	DAMPER
11	DAMPER
12	BELLEVILLE WASHER,M6
13	NUT,M6, Cl 10
13	NUT M6 HEX
14	BOLT,Hex, M8 x 50, 8.8
15	NUT-M8 NYLOC
15	NUT,M8 x 1.25, Cl 8
16	SUPPORT
17	SUPPORT
18	SPRING
19	WASHER
19	WASHER,M8 (pack of 10)
19	WASHER,M8
20	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
21	REFLECTOR
22	LAMP
23	BULB
23	BULB (pack of 2)
24	BULB,12V, 21W (pack of 2)
24	BULB,12V, 21W
25	CLAMP
26	WIRE HARNESS
27	WIRE HARNESS

MalpasDirect - Replacement Tractors Parts

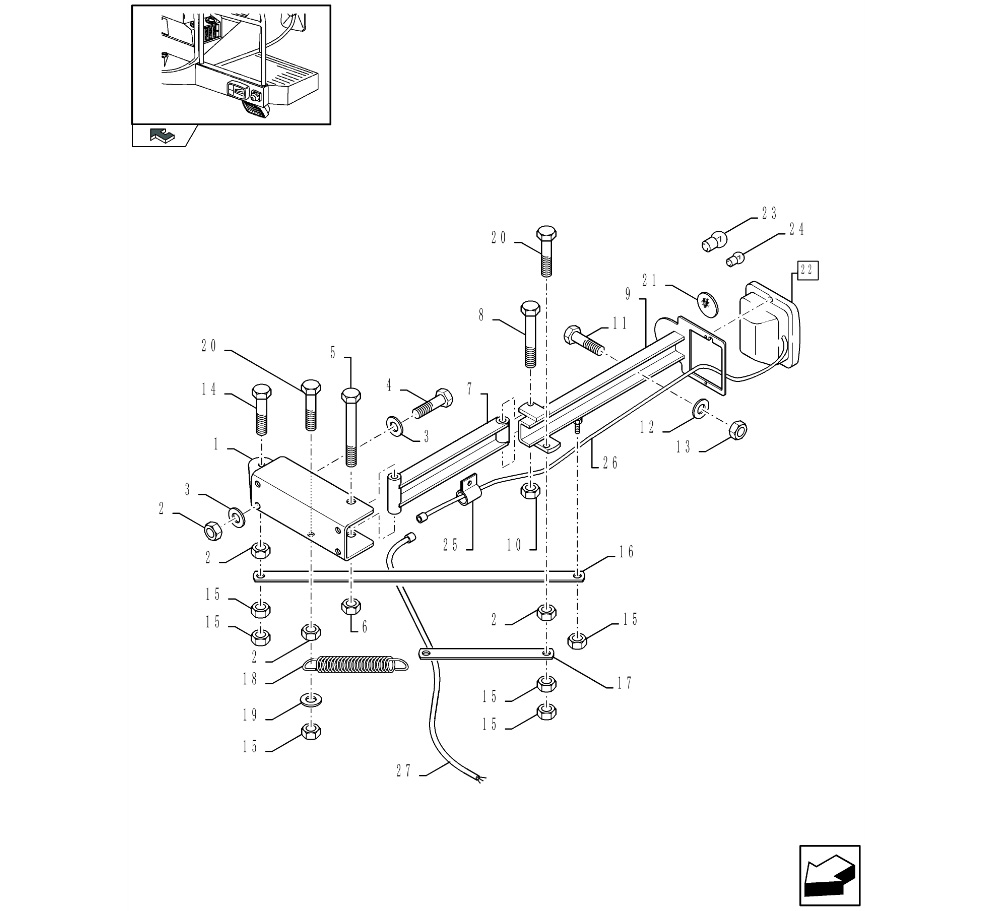

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84041238 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	1
4	120106 BOLT,Hex, M8 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	309308 BOLT,Hex, M12 x 120, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
6	100038 NUT,M12 x 1.75, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	84041244 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	43144 BOLT,Hex, M10 x 70, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
9	84041239 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	25
11	80916454 DAMPER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	916454 DAMPER - this part has been superceded by 80916454 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
13	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
14	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
15	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
16	84041249 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84041248 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84014792 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86625263 WASHER for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
19	63707 WASHER,M8 (pack of 10) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
19	378243 WASHER,M8 - this part has been superceded by 63707 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
21	437024 REFLECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84041302 LAMP for all New Holland FX Forager Harvesters models (23, 24) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	418870 BULB - this part has been superceded by 14149590 Taillight 10 W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	14149590 BULB (pack of 2) Taillight 10 W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	14148190 BULB,12V, 21W (pack of 2) Stoplight (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	398877 BULB,12V, 21W - this part has been superceded by 14148190 Stoplight (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	9503928 CLAMP - this part has been superceded by 84818441 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84035084 WIRE HARNESS for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84035294 WIRE HARNESS for all New Holland FX Forager Harvesters models FOR STANDARD LIGHT ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
				Add
