FX30 - (1/02-) Electrical System

Key

Ref	Description
1	GUIDE
2	BOLT,Hex, M6 x 20, 8.8
3	BELLEVILLE WASHER,Belleville, M6
4	NUT,M6, Cl 10
4	NUT M6 HEX
5	WIRE HARNESS
6	CLAMP
7	NOT SERVICED
8	WIRE HARNESS
9	COVER
10	SEAL
11	PROFILE
12	PLUG
13	HOUSING
14	HYD CONNECTOR
15	PLUG
16	PLUG
17	FOAM INSULATION
18	HOUSING
18	HOUSING
19	LIGHT
20	HOUSING
20	HOUSING
21	LIGHT
22	CLAMP
23	SCREW,Cross Pan Hd, M6 x 20
24	WASHER,M6
24	WASHER,M6
25	WIRE HARNESS
26	POWER SOCKET
26	POWER SOCKET
27	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
28	BELLEVILLE WASHER,M8
29	NUT,M8, Cl 8

MalpasDirect - Replacement Tractors Parts

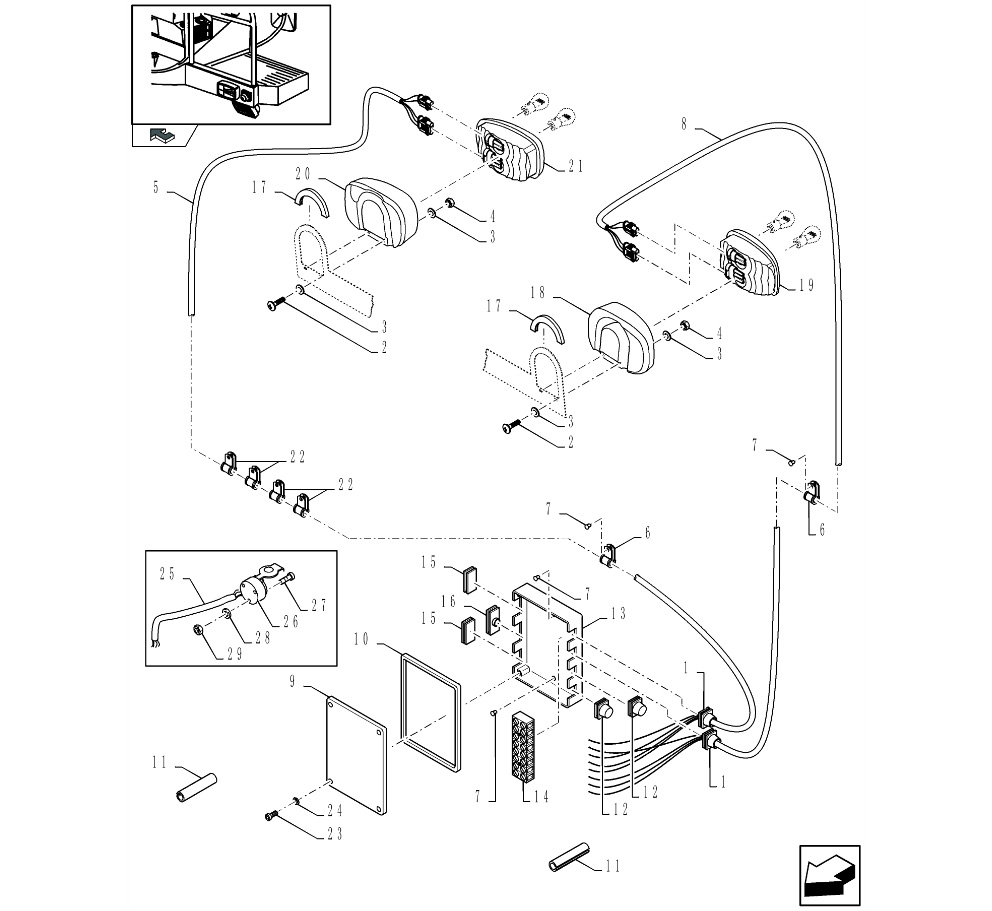

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	9512597 GUIDE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
3	412649 BELLEVILLE WASHER,Belleville, M6 for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
4	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
5	84446580 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	9503928 CLAMP - this part has been superceded by 84818441 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	NS NOT SERVICED RIVET (Job Qty: 4)	-	-	-
8	84446578 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9506872 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9506873 SEAL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	80401310 PROFILE - this part has been superceded by 401310 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9504337 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9507881 HOUSING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	433132 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9508323 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9504343 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84806244 FOAM INSULATION for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	87480068 HOUSING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84607391 HOUSING - this part has been superceded by 87480069 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84429840 LIGHT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84607390 HOUSING - this part has been superceded by 87480068 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	87480069 HOUSING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84429841 LIGHT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	431352 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	86511830 SCREW,Cross Pan Hd, M6 x 20 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	9824259 WASHER,M6 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
24	140015 WASHER,M6 - this part has been superceded by 9824259 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84061106 WIRE HARNESS for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	265927 POWER SOCKET - this part has been superceded by 9603575 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	9603575 POWER SOCKET for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
28	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
29	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
				Add
