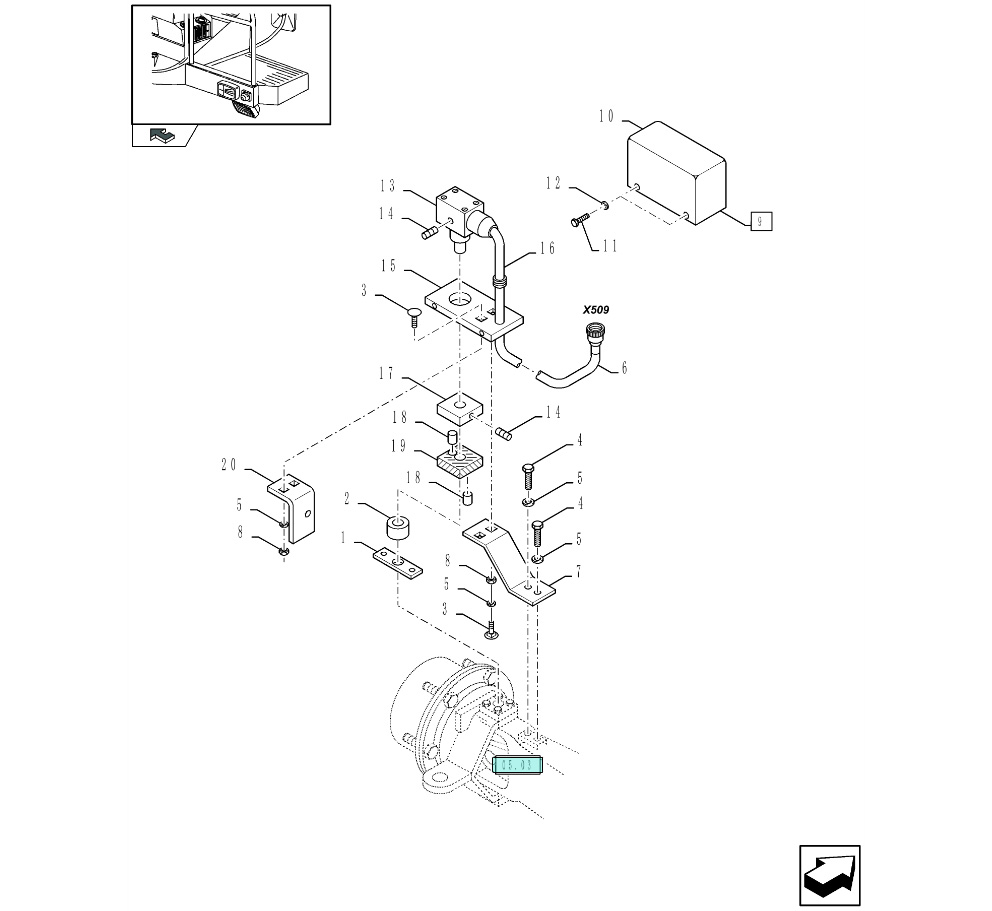

FX30 - (1/02-) Electrical System

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

View Previous Diagram View Next Diagram
Ref
Part No. and Description
Price (GBP)

Min.(Qty)
Add
1
84012750
BRACKET for all New Holland FX Forager Harvesters models
FOR 4WD ONLY (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
2
84019470
BUSHING for all New Holland FX Forager Harvesters models
FOR 2WD ONLY (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
3
43465
CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd - this part has been superceded by 811-8030
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
3
811-8030
CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
4
43127
BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624
(Job Qty: 2)
Part superseded - limited stock

Call
Ex VAT
10
5
322358
BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models
(Job Qty: 3)
In Stock

Call
Ex VAT
1
6
84057105
WIRE HARNESS for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
7
84019471
SUPPORT for all New Holland FX Forager Harvesters models
FOR 2WD ONLY (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
7
84012751
SUPPORT for all New Holland FX Forager Harvesters models
FOR 4WD ONLY (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
8
89706690
NUT,M8, Cl 8 - this part has been superceded by 43362
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
9
84019469
HOUSING for all New Holland FX Forager Harvesters models
, Serial Range: (10-19) (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
10
89815542
COVER for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
11
378056
SCREW,Hex, M6 x 10, 8.8, Full Thd for all New Holland FX Forager Harvesters models
(Job Qty: 4)
Part superseded - limited stock

Call
Ex VAT
5
12
322357
BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models
(Job Qty: 4)
Part superseded - limited stock

Call
Ex VAT
25
13
89815543
SENSOR for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
14
84012755
SET SCREW,Hex Soc, M6 x 5 for all New Holland FX Forager Harvesters models
(Job Qty: 3)
Part superseded - limited stock

Call
Ex VAT
2
15
89815545
PLATE for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
16
89815544
GUIDE for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
17
84012753
RING for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
18
84012756
LOCK PIN,M4 x 16, Slotted - this part has been superceded by 190003909611
(Job Qty: 4)
Part superseded - limited stock

Call
Ex VAT
1
19
84012752
RING for all New Holland FX Forager Harvesters models
(Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
20
87398736
SUPPORT for FX30/40/50/60
, Start Serial: D512,FOR ADJUSTABLE STEERING AXLE ONLY (Job Qty: 1)
Part superseded - limited stock

Call
Ex VAT
1
