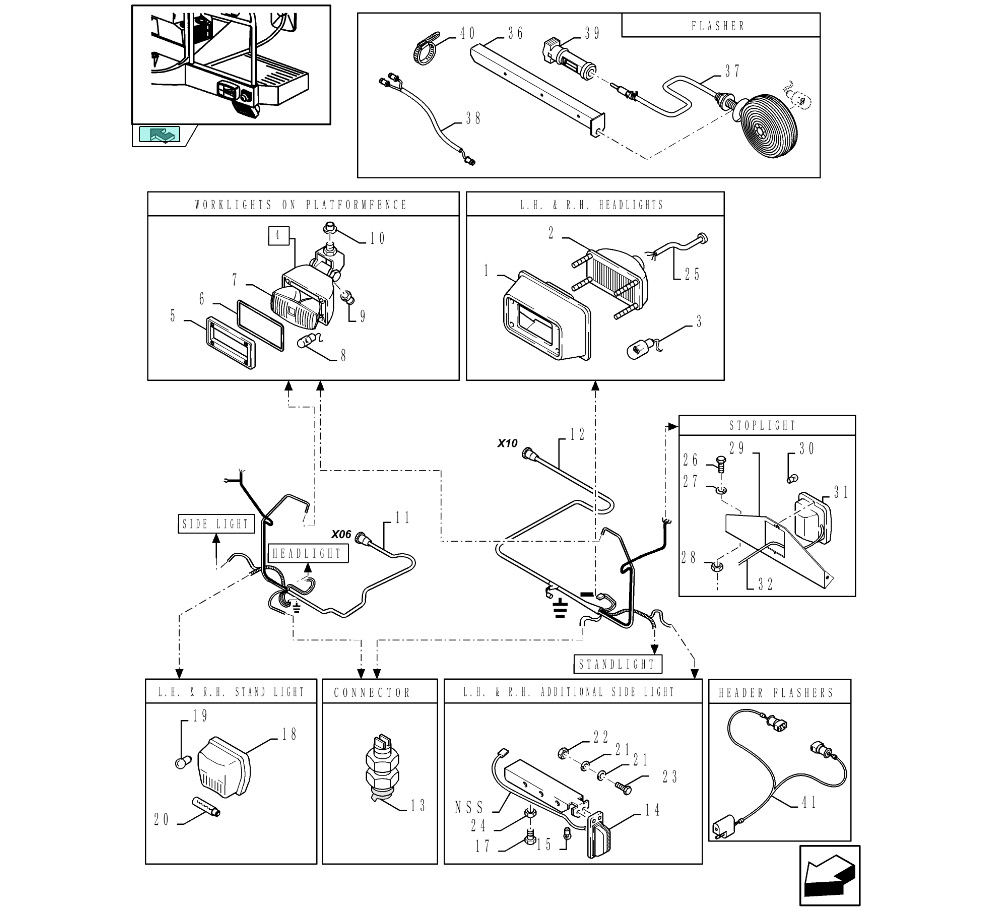

FX30 - (1/02-) Electrical System

Key

Ref	Description
1	ARMATURE
2	HEADLAMP
2	HEADLAMP
3	BULB,H4, 12V, 60/55W
3	BULB
3	BULB,H4, 12V, 60/55W
4	LAMP
5	COVER
6	SEAL
6	SEAL
7	LAMP REFLECTOR
7	LAMP REFLECTOR
8	NOT SERVICED SEPARATELY
9	RUBBER BUSHING
10	PLUG
11	WIRE HARNESS
12	WIRE HARNESS
13	POWER SOCKET
14	LAMP
14	FLASHER UNIT
14	FLASHER UNIT
15	BULB
15	BULB
15	NOT SERVICED SEPARATELY
16	SUPPORT
16	SUPPORT
17	BOLT,Hex, M10 x 50, 8.8, Full Thd
18	LAMP
18	LAMP
18	LAMP
19	BULB,12V, 21W (pack of 2)
19	BULB,12V, 21W
20	BULB (pack of 2)
20	BULB
21	BELLEVILLE WASHER,M6
22	NUT,M6, Cl 10
22	NUT M6 HEX
23	BOLT,Hex, M6 x 16, 8.8
24	NUT,M10, Cl 8
25	WIRE HARNESS
26	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
27	BELLEVILLE WASHER,M8
28	NUT,M8, Cl 8
29	SUPPORT
30	BULB,12V, 21W
30	BULB,12V, 21W (pack of 2)
31	LAMP
32	WIRE HARNESS
36	SUPPORT
37	FLASHER UNIT
37	FLASHER UNIT
38	WIRE HARNESS
39	WIRE CONNECTOR,Male, 2 Pole
40	CABLE TIE,M9 x 165 or M5 x 197
40	CABLE TIE,M9 x 165 or M5 x 197 (pack of 50)
41	WIRE HARNESS
