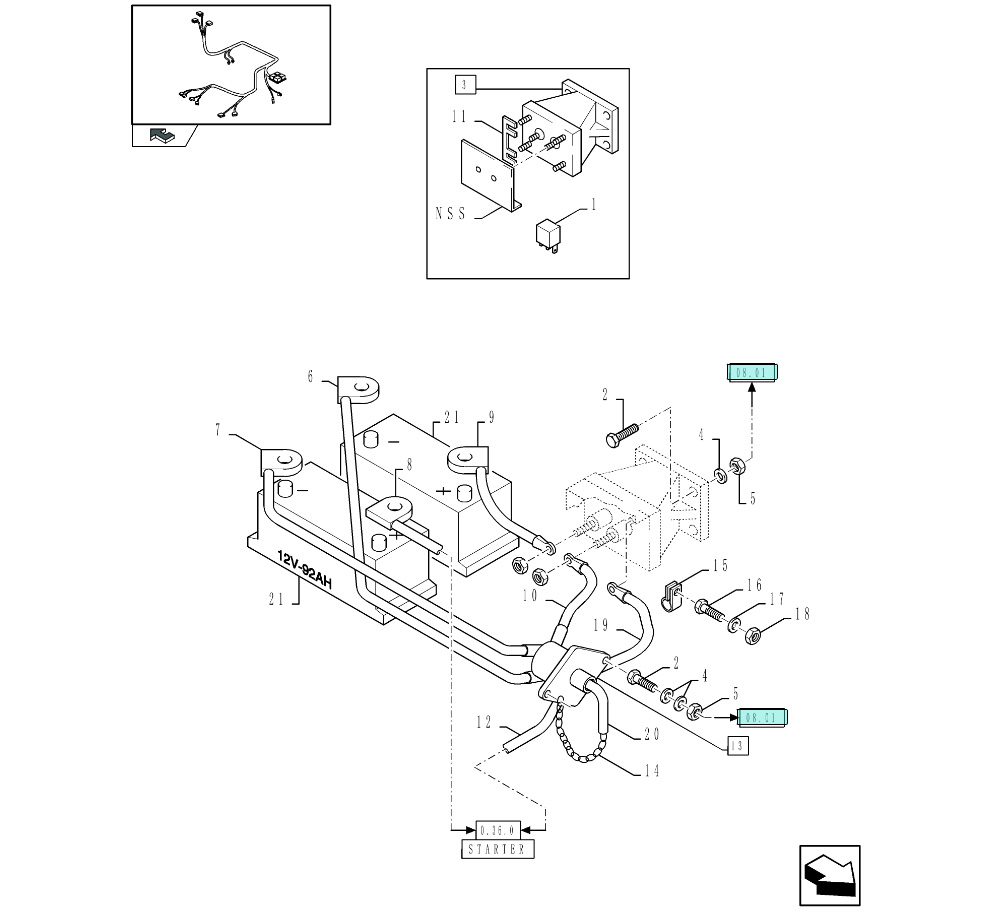

FX30 - (1/02-) Electrical System

Key

Ref	Description
1	NOT SERVICED SEPARATELY
2	BOLT,Hex, M8 x 25, 8.8
3	RELAY
4	BELLEVILLE WASHER,M8
5	NUT,M8, Cl 8
6	ELECTRIC CABLE
7	ELECTRIC CABLE
8	ELECTRIC CABLE
9	ELECTRIC CABLE
10	ELECTRIC CABLE
11	FUSE
11	FUSE
12	ELECTRIC CABLE
12	ELECTRIC CABLE
13	IGNITION SWITCH
14	CHAIN
15	CLAMP
16	BOLT,Hex, M6 x 20, 8.8
17	BELLEVILLE WASHER,M6
18	NUT,M6, Cl 10
18	NUT M6 HEX
19	ELECTRIC CABLE
20	LOCK KEY
21	WET BATTERY
21	DRY BATTERY
21	WET BATTERY

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	NSS NOT SERVICED SEPARATELY (Job Qty: 1)	-	-	-
2	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	389120 RELAY for all New Holland FX Forager Harvesters models (1, 11) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	1
5	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84017832 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84017831 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84017830 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84017829 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84017834 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	420580 FUSE - this part has been superceded by 12393149 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	12393149 FUSE (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
12	84004377 ELECTRIC CABLE for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84058315 ELECTRIC CABLE for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84005283 IGNITION SWITCH for all New Holland FX Forager Harvesters models (20) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	539289 CHAIN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	418407 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
17	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
18	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
19	84001812 ELECTRIC CABLE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84607500 LOCK KEY for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	F885DSW WET BATTERY for FX28/30/38/40/48/50/58/60 US, Group 49 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	9624940DS DRY BATTERY - this part is no longer serviced CANADA, Group 49 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	F885DSW WET BATTERY for FX28/30/38/40/48/50/58/60 EU battery,BCI GROUP 434, PURCHASE LOCALLY THROUGH THE DIRECT SHIP PROGRAM (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
