FX30 - (1/02-) Electrical System

Key

Ref	Description
1	WIRE HARNESS
2	RING
3	HYD CONNECTOR
4	SEAL
5	HYD CONNECTOR
6	SCREW,Cross Pan Hd, M5 x 25
6	SCREW,Cross Pan Hd, M5 x 25
7	BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN
8	NUT,M5, Cl 8 (pack of 5)
8	NUT,M5, Cl 8
9	SCREW,Cross Pan Hd, M4 x 40 (pack of 10)
9	SCREW,Cross Pan Hd, M4 x 40
10	BELLEVILLE WASHER,Belleville, M4
11	NUT,M4, Cl 8
11	NUT,M4, Cl 8 (pack of 25)
12	POWER SOCKET,7 Pin
12	POWER SOCKET,7 Pin
13	WIRE HARNESS
13	WIRE HARNESS
13	WIRE HARNESS
14	NUT
15	LOCK WASHER
16	HYD CONNECTOR
17	RING
18	ELEC CONNECTOR
19	WIRE HARNESS
20	SCREW
21	WIRE CONNECTOR
22	GROMMET,3/4" x 1 3/8" x 1 1/16"
23	WIRE HARNESS
24	SIEVE ADJUSTMENT SWITCH
25	CLAMP

MalpasDirect - Replacement Tractors Parts

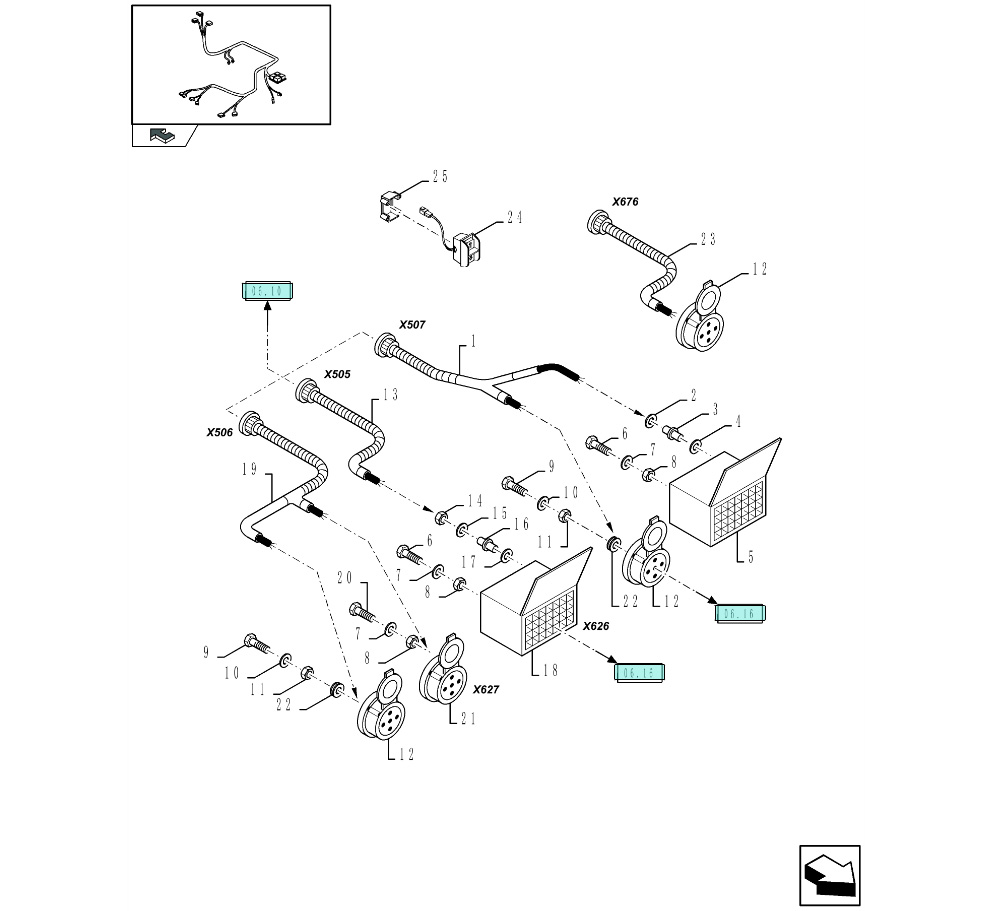

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84441366 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84019207 RING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84019073 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84019074 SEAL for all New Holland FX Forager Harvesters models SEALRING (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84018932 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	190003820166 SCREW,Cross Pan Hd, M5 x 25 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	412625 SCREW,Cross Pan Hd, M5 x 25 - this part has been superceded by 86585710 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	322356 BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
8	10788811 NUT,M5, Cl 8 (pack of 5) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	86508813 NUT,M5, Cl 8 - this part has been superceded by 10788811 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	86585707 SCREW,Cross Pan Hd, M4 x 40 (pack of 10) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	412658 SCREW,Cross Pan Hd, M4 x 40 - this part has been superceded by 86585707 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
11	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	57121 NUT,M4, Cl 8 (pack of 25) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
12	83959716 POWER SOCKET,7 Pin (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	398224 POWER SOCKET,7 Pin - this part has been superceded by 83959716 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84441367 WIRE HARNESS - this part has been superceded by 84449800 , Serial Range: -C289 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84449800 WIRE HARNESS for FX30/40/50/60 , Serial Range: -F290305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84449838 WIRE HARNESS for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84022437 NUT for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	84022438 LOCK WASHER for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
16	84022440 HYD CONNECTOR for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84022441 RING for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84018930 ELEC CONNECTOR for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84441365 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84015627 SCREW - this part has been superceded by 190003820168 M5x 35 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84074251 WIRE CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	102043 GROMMET,3/4" x 1 3/8" x 1 1/16" for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	84446466 WIRE HARNESS for FX30/40/50/60 FOR DIRECT CUT HEADER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	86627351 SIEVE ADJUSTMENT SWITCH for FX30/40/50/60 HEADER HEIGHT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	86627352 CLAMP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
