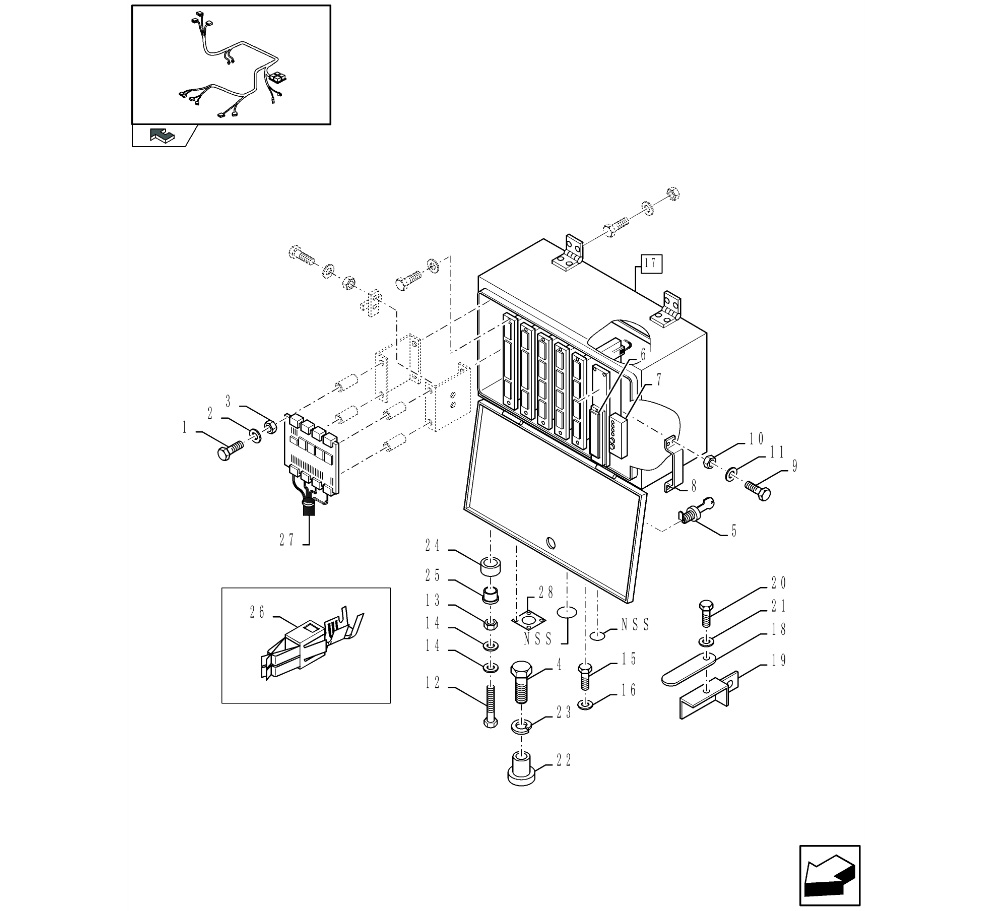

FX30 - (1/02-) Electrical System

Key

Ref	Description
1	BOLT,Hex, M6 x 16, 8.8
2	BELLEVILLE WASHER,M6
3	NUT,M6, Cl 10
3	NUT M6 HEX
4	BOLT,Hex, M12 x 16, 8.8, Full Thd
5	LOCK
6	ELECTRONIC CONTROL UNIT
7	ELECTRONIC CONTROL UNIT
8	SUPPORT
9	BOLT,Hex, M4 x 10, 8.8, Full Thd (pack of 10)
9	BOLT,Hex, M4 x 10, 8.8, Full Thd
10	NUT,M4, Cl 8
10	NUT,M4, Cl 8 (pack of 25)
11	BELLEVILLE WASHER,Belleville, M4
12	BOLT,Hex, M8 x 50, 8.8
13	NUT,M8, Cl 8
14	BELLEVILLE WASHER,M8
15	HYD CONNECTOR
16	NUT
17	NOT SERVICED
17	NOT SERVICED
17	NOT SERVICED
17	NOT SERVICED
18	BRACKET
19	BRACKET
20	BOLT,Hex, M6 x 16, 8.8
21	NUT,M6 x 1, Cl 8
22	HANDLE
23	BELLEVILLE WASHER,Belleville, M12
24	PLASTIC RING
25	PLASTIC RING
26	DIODE
27	WIRE HARNESS
27	WIRE HARNESS
27	WIRE HARNESS
27	WIRE HARNESS
28	COVER
28	SEAL
28	SEAL
28	COVER
28	COVER

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	120099 BOLT,Hex, M6 x 16, 8.8 - this part has been superceded by 86508568 (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
3	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 10) In Stock Shipping Costs...	Call Ex VAT	1
4	388113 BOLT,Hex, M12 x 16, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	9814881 LOCK - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84053755 ELECTRONIC CONTROL UNIT - this part is no longer serviced EMRD (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84018170 ELECTRONIC CONTROL UNIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84019665 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	5113531 BOLT,Hex, M4 x 10, 8.8, Full Thd (pack of 10) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	385683 BOLT,Hex, M4 x 10, 8.8, Full Thd - this part has been superceded by 5113531 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	57121 NUT,M4, Cl 8 (pack of 25) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
11	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
13	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
15	9837223 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9839398 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	NS NOT SERVICED BOX,FOR FX60 ONLY (Job Qty: 1)	-	-	-
17	NS NOT SERVICED (12 to 14, 26, 27), BOX,FOR NA ONLY,FOR FX60 ONLY (Job Qty: 1)	-	-	-
17	NS NOT SERVICED (12 to 14, 26, 27), BOX,FOR FX30-40-50 ONLY (Job Qty: 1)	-	-	-
17	NS NOT SERVICED BOX,FOR FX30-40 ONLY,FOR NA ONLY (Job Qty: 1)	-	-	-
18	84052103 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84052117 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	120099 BOLT,Hex, M6 x 16, 8.8 - this part has been superceded by 86508568 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
22	84053017 HANDLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
24	9815122 PLASTIC RING for FX28/30/38/40/48/50/58/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	9815121 PLASTIC RING for FX28/30/38/40/48/50/58/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84400960 DIODE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84441375 WIRE HARNESS for FX30/40/50/60 , Serial Range: -C305,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84449999 WIRE HARNESS for FX30/40/50/60 , Start Serial: D306,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84441374 WIRE HARNESS for FX30/40/50/60 , Serial Range: -C305,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84452000 WIRE HARNESS for FX30/40/50/60 , Start Serial: D306,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84004450 COVER for FX30/40/50/60 X511 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84004383 SEAL for FX30/40/50/60 (Job Qty: 13) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84004382 SEAL for FX30/40/50/60 X509 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
28	89818021 COVER - this part has been superceded by 9818021 X513,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	9818021 COVER X513,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
