FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	BOLT,Hex, M12 x 30, 8.8, Full Thd
2	PIN
3	BELLEVILLE WASHER,Belleville, M12
4	NUT,M12, Cl 8
5	BOLT,Hex, M10 x 35, 8.8, Full Thd
6	WASHER,M10 x 24 x 2 Thk
7	NUT,M10 x 1.5, Cl 8
8	ADJUSTING PLATE
9	BOLT,Hex, M8 x 50, 8.8
10	PLATE
10	PLATE
10	PLATE
10	GRASS PLATE
10	PLATE
11	FRAME
11	FRAME
12	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
13	HINGE
14	BELLEVILLE WASHER,M8
15	NUT,M8, Cl 8
16	BOLT,Hex, M16 x 30, 8.8, Full Thd
17	BELLEVILLE WASHER,M16
18	CRANKED HANDLE
19	COTTER PIN,M3.2 x 25
20	GUIDE
21	SPRING
22	WASHER,M12 x 24 x 2.5
22	WASHER,M12 x 24 x 2.5
23	PLATE
23	PLATE
23	PLATE
24	COTTER PIN
25	WASHER,M16 x 56 x 5
26	NUT,M10, Cl 8
27	LUBE NIPPLE,M6 x 1, 16mm lg
28	RING
29	BUSHING
29	BUSHING
30	SEALING RING
31	SHIM
32	SNAP RING,M70, Ext
33	COVER
34	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
34	BOLT,Hex, M10 x 25, 8.8, Full Thd
35	BELLEVILLE WASHER,M10
36	PLUG
36	PLUG
37	SPRING
38	BANJO BOLT
39	EYEBOLT
40	SPRING

MalpasDirect - Replacement Tractors Parts

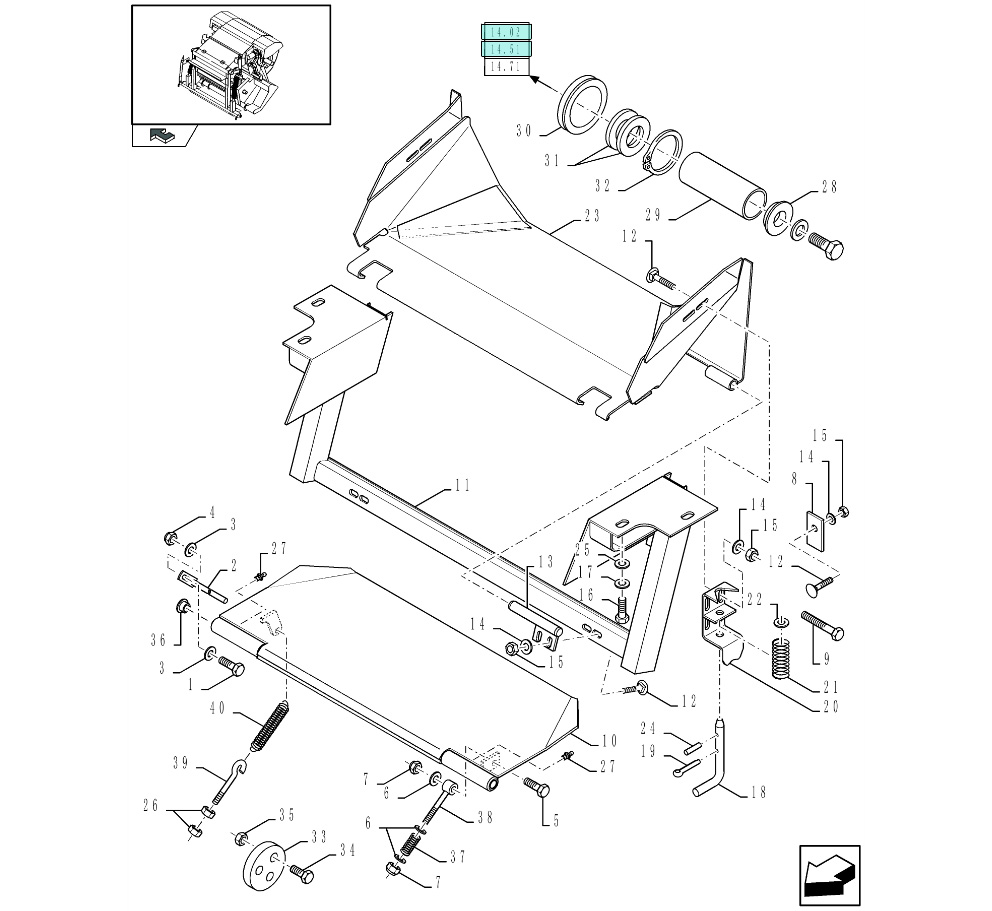

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
2	84045688 PIN for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
4	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	9706704 BOLT,Hex, M10 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
8	84069989 ADJUSTING PLATE for FX28/30/38/40/48/50/58/60 TO REPLACE CROP PRO PLUS™ (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models TO REPLACE CROP PRO PLUS™ (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	84441105 PLATE for FX30/40/50/60 , Serial Range: -C305,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84790412 PLATE for FX30/40/50/60 , Serial Range: -F306433,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87367828 PLATE - this part has been superceded by 87564633 , Serial Range: -F434449,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84432602 GRASS PLATE for FX28/30/38/40/48/50/58/60 , Start Serial: D306,TO REPLACE CROP PRO PLUS™,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87564633 PLATE for FX30/40/50/60 , Start Serial: D450,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84814878 FRAME for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84334440 FRAME for FX28/30/38/40/48/50/58/60 TO REPLACE CROP PRO PLUS™ (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
13	84014619 HINGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
15	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	43167 BOLT,Hex, M16 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
17	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
18	84014616 CRANKED HANDLE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	130004 COTTER PIN,M3.2 x 25 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	84017507 GUIDE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	226829 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	87364 WASHER,M12 x 24 x 2.5 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	86511324 WASHER,M12 x 24 x 2.5 - this part has been superceded by 87364 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84443057 PLATE for FX30/40/50/60 , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84005239 PLATE for all New Holland FX Forager Harvesters models , Serial Range: -F306433 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	87368293 PLATE for FX30/40/50/60 , Start Serial: D434 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	370539 COTTER PIN for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	337522 WASHER,M16 x 56 x 5 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
26	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models , Start Serial: D434 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
27	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models , Start Serial: D434 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
28	84015775 RING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84068399 BUSHING - this part has been superceded by 84446261 , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84446261 BUSHING for FX30/40/50/60 , Start Serial: D270 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84068419 SEALING RING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
31	84068394 SHIM for FX28/30/38/40/48/50/58/60 THK.: 0.5 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	300636 SNAP RING,M70, Ext for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
33	84435498 COVER for FX28/30/38/40/48/50/58/60 TO REPLACE CROP PRO PLUS™ (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
34	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	25
36	610662 PLUG for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	355551 PLUG - this part has been superceded by 610662 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	84021757 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	84021756 BANJO BOLT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	86599359 EYEBOLT for FX30/40/50/60 , Start Serial: D434 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	86539120 SPRING for FX30/40/50/60 , Start Serial: D434 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
