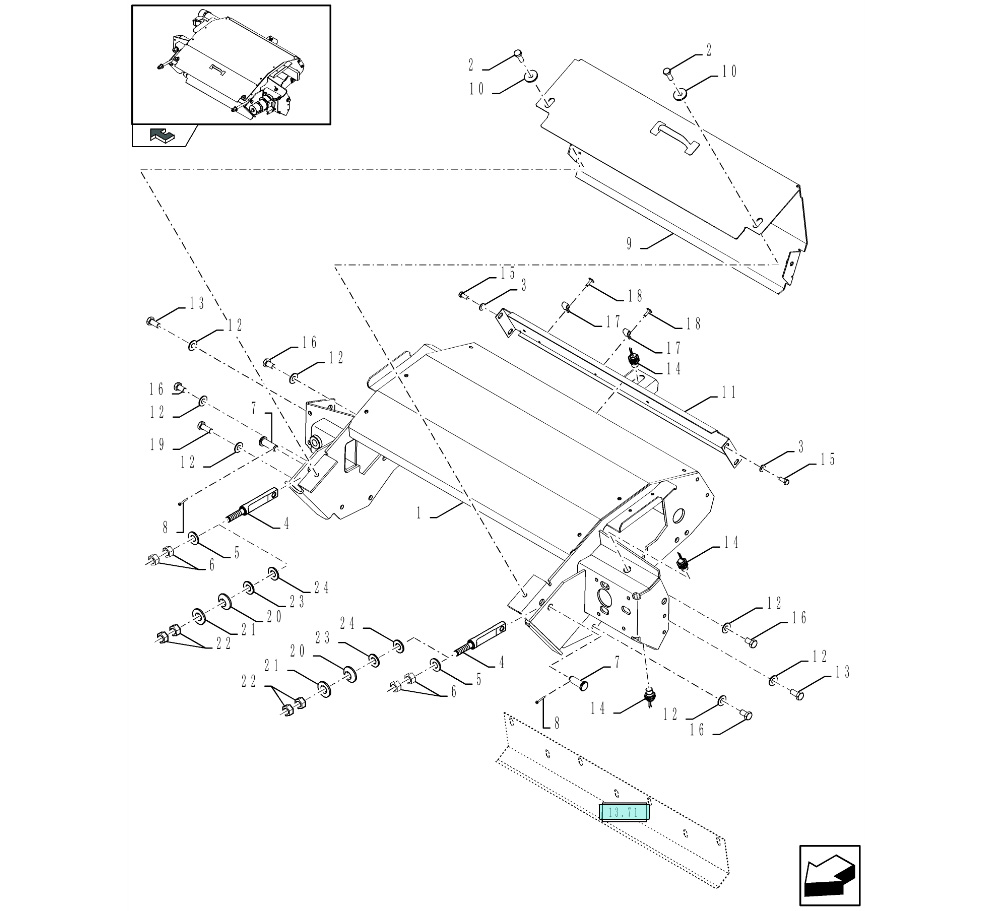

FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	FRAME
2	BOLT,Hex, M10 x 30, 8.8, Full Thd
3	BELLEVILLE WASHER,M8
4	BOLT
4	BOLT
5	WASHER,M16
6	NUT,M16, Cl 8
7	CLEVIS PIN,M16 x 45
8	COTTER PIN,M3.2 x 25
9	COVER
10	WASHER,M10 x 34 x 3
11	COVER
12	BELLEVILLE WASHER,Belleville, M12
13	BOLT,Hex, M12 x 25, 8.8
14	SENSOR
15	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
16	BOLT,Hex, M12 x 20, 8.8, Full Thd
17	CLAMP
18	RIVET,Pop, M4.8 x 18
19	BOLT,Hex, M12 x 30, 8.8, Full Thd
20	WASHER
21	THRUST WASHER
22	NUT,M20, Cl 8
23	WASHER
23	WASHER
24	WASHER

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84789054 FRAME for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
3	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
4	84023279 BOLT for all New Holland FX Forager Harvesters models , Serial Range: -C419 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	87347091 BOLT for FX30/40/50/60 , Start Serial: D420 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	378246 WASHER,M16 for all New Holland FX Forager Harvesters models , Serial Range: -C419 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models , Serial Range: -C419 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
7	390071 CLEVIS PIN,M16 x 45 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	130004 COTTER PIN,M3.2 x 25 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	84099487 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	140042 WASHER,M10 x 34 x 3 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
11	84038827 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 7) In Stock Shipping Costs...	Call Ex VAT	10
13	300388 BOLT,Hex, M12 x 25, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
14	84056994 SENSOR for FX28/30/38/40/48/50/58/60 (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	1
15	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
16	43151 BOLT,Hex, M12 x 20, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	9507807 CLAMP for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
18	9512290 RIVET,Pop, M4.8 x 18 for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
19	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
20	87360847 WASHER for FX30/40/50/60 , Start Serial: D420 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84005277 THRUST WASHER for FX30/40/50/60 , Start Serial: D420 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	9706694 NUT,M20, Cl 8 for all New Holland FX Forager Harvesters models , Start Serial: D420 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	140094 WASHER for all New Holland FX Forager Harvesters models , Start Serial: F420425 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	87392355 WASHER for FX30/40/50/60 , Start Serial: D426 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	9820493 WASHER for FX30/40/50/60 , Start Serial: D420 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
