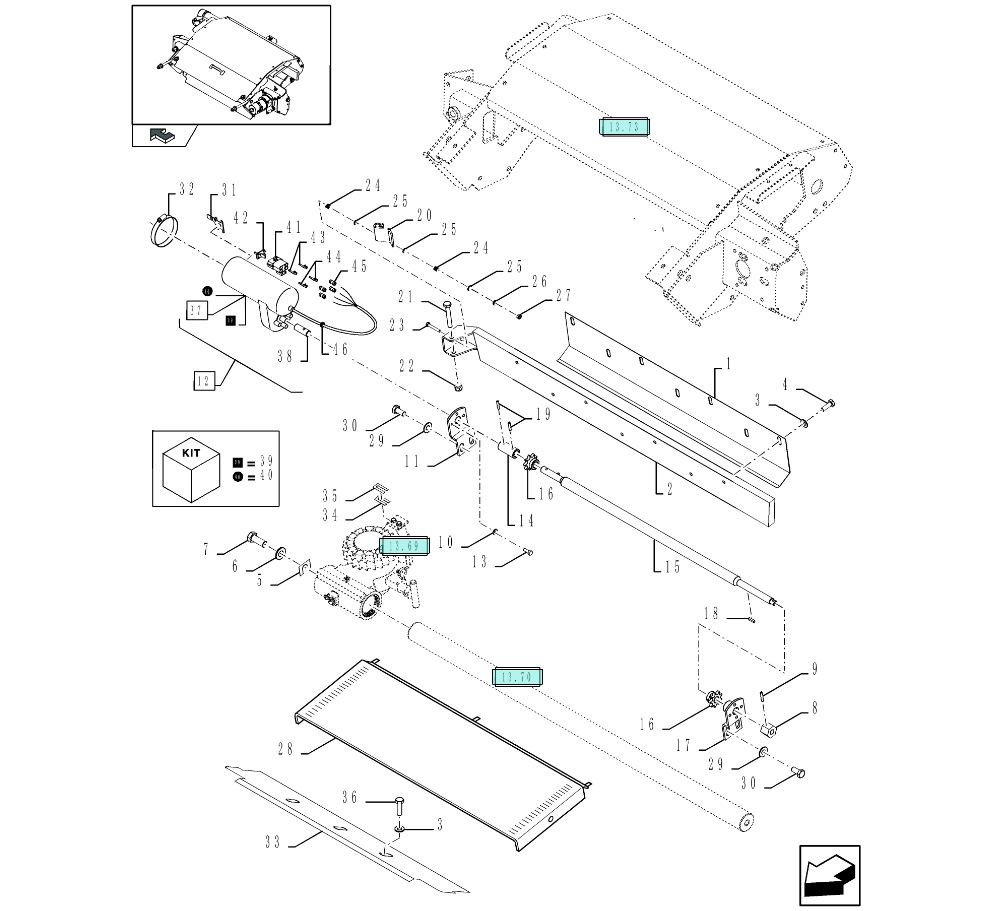

FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	PLATE
2	SUPPORT
3	BELLEVILLE WASHER,M10
4	BOLT,Hex, M10 x 30, 8.8, Full Thd
5	ADJUSTING PLATE
6	BELLEVILLE WASHER,M16
7	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
7	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
8	SLEEVE
9	LOCK PIN,M5 x 30, Slotted
10	BELLEVILLE WASHER,M6
11	SUPPORT
12	SMALL ELECTRIC MOTOR
13	BOLT,Hex, 1/4"-20 x 3/4", G5, Full Thd
14	COUPLING BLOCK
15	SHAFT
16	DRIVEN SPROCKET
17	SUPPORT
17	SUPPORT
18	KEY
19	PIN,M5 x 26, Slotted
20	BRACKET
21	BOLT,Hex, M10 x 70, 8.8
22	NUT,M10 x 1.5, Cl 8
23	BOLT,Hex, M6 x 40, 8.8
24	SPRING
24	SPRING
25	SHIM
26	WASHER,M6 x 12 x 1.6 Thk
27	NUT,M6 x 1, Cl 8
28	DOOR-SHARPENING
29	BELLEVILLE WASHER,Belleville, M12
30	BOLT,Hex, M12 x 25, 8.8
31	SUPPORT
32	CLAMP
32	CLAMP
33	PLATE
34	ADJUSTING PLATE,0.5mm Thk
35	ADJUSTING PLATE,0.15mm Thk
36	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
37	ELECTRIC MOTOR
38	SHAFT
39	KIT
40	KIT
40	KIT
41	ELEC CONNECTOR,Male, 4 Pole
42	ELEC CONNECTOR
43	TERMINAL,2 - 3 mm2
44	TERMINAL,0.5 - 1.5 mm2
44	TERMINAL,0.5 - 1.5 mm2
45	SEAL
46	RUBBER BUSHING

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84031574 PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84032931 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 10) In Stock Shipping Costs...	Call Ex VAT	25
4	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 7) In Stock Shipping Costs...	Call Ex VAT	10
5	84022135 ADJUSTING PLATE for all New Holland FX Forager Harvesters models THK.: 0.3 MM (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
7	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84015867 SLEEVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	393871 LOCK PIN,M5 x 30, Slotted for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
10	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
11	84017797 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84019724 SMALL ELECTRIC MOTOR - this part has been superceded by 9807904 , Serial Range: (37-46),MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9707580 BOLT,Hex, 1/4"-20 x 3/4", G5, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
14	84019855 COUPLING BLOCK for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84068816 SHAFT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84017038 DRIVEN SPROCKET for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	89809086 SUPPORT - this part has been superceded by 9809086 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9809086 SUPPORT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	336126 KEY for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	130045 PIN,M5 x 26, Slotted for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	84043010 BRACKET for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	43144 BOLT,Hex, M10 x 70, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	25
23	43118 BOLT,Hex, M6 x 40, 8.8 - this part has been superceded by 120102 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	35674 SPRING - this part has been superceded by 86636513 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	86636513 SPRING for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	130298 SHIM for FX28/30/38/40/48/50/58/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	86588450 WASHER,M6 x 12 x 1.6 Thk for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
28	84068815 DOOR-SHARPENING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
29	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
30	300388 BOLT,Hex, M12 x 25, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
31	84032700 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	381145 CLAMP - this part has been superceded by 82012730 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	82012730 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84038826 PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84022926 ADJUSTING PLATE,0.5mm Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	84022925 ADJUSTING PLATE,0.15mm Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
37	9807904 ELECTRIC MOTOR for FX30/40/50/60 , Serial Range: (38-40) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	84019852 SHAFT - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	9614451 KIT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	9614449 KIT - this part has been superceded by 89614449 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	89614449 KIT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	84018970 ELEC CONNECTOR,Male, 4 Pole for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	84018976 ELEC CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
43	84018981 TERMINAL,2 - 3 mm2 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
44	84018979 TERMINAL,0.5 - 1.5 mm2 - this part has been superceded by 87694674 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	87694674 TERMINAL,0.5 - 1.5 mm2 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	84018984 SEAL for FX30/40/50/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
46	190067 RUBBER BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
