FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	GEARBOX
2	PLUG
3	COVER
4	ELBOW
5	SNAP RING
6	BEARING ASSY
6	BEARING ASSY
7	SHIM
8	OIL SEAL
9	GEAR
9	GEAR
10	BEARING ASSY
10	BEARING ASSY
11	CAP COVER
11	CAP COVER
12	CIRCLIP
13	SHIM KIT
14	OIL SEAL
15	SHAFT
16	SHAFT
17	BEARING ASSY
17	BEARING ASSY
18	GEAR
18	GEAR
19	SHAFT
20	COVER
20	COVER
21	GEAR
22	SHAFT
23	CASING
24	PLATE
25	PLUG
25	PLUG
26	COVER
27	BOLT,Hex, M12 x 20, 8.8, Full Thd
28	O-RING,129.77mm ID x 3.53mm Width
29	COVER
30	BOLT,Hex, M8 x 16, 8.8
31	WASHER
32	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
33	SHIM
33	SHIM
34	SHIM
35	WASHER,M8 x 16 x 1.6
36	WASHER,M16 x 30 x 3
37	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
37	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
38	BOLT,Hex, M8 x 12, 8.8, Full Thd
38	BOLT
39	PLUG

MalpasDirect - Replacement Tractors Parts

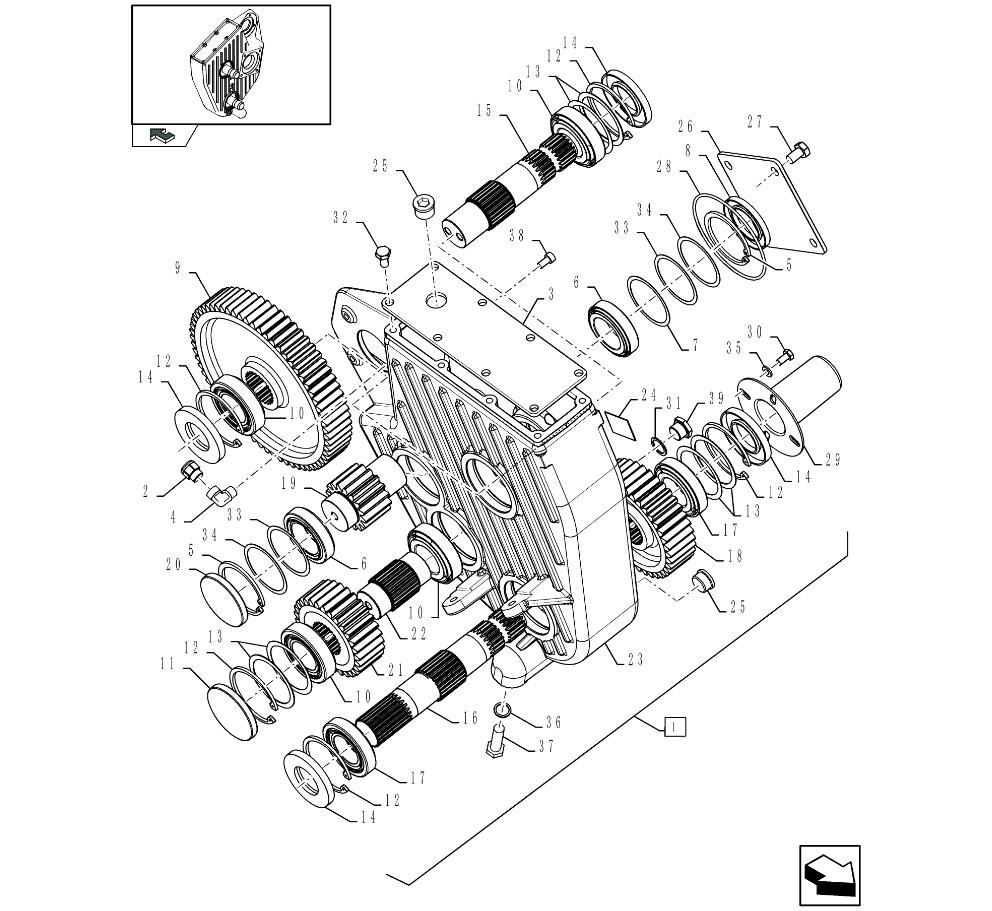

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84443156 GEARBOX for FX30/40/50/60 , Serial Range: (2-32) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84446823 PLUG for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84446715 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84446854 ELBOW for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84446717 SNAP RING for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84446718 BEARING ASSY - this part has been superceded by 24903830 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	24903830 BEARING ASSY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84814797 SHIM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84817150 OIL SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84446720 GEAR - this part has been superceded by 87524758 Z= 64, Serial Range: -C469 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	87524758 GEAR for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84819200 BEARING ASSY - this part has been superceded by 26800150 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	26800150 BEARING ASSY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84446721 CAP COVER - this part has been superceded by 87523533 , Serial Range: -C469 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	87523533 CAP COVER for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84000792 CIRCLIP - this part has been superceded by 920018136 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84053921 SHIM KIT for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84817147 OIL SEAL for FX30/40/50/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84446722 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84446723 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	26799970 BEARING ASSY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84819201 BEARING ASSY - this part has been superceded by 26799970 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84446724 GEAR - this part has been superceded by 87524763 Z= 38, Serial Range: -C469 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	87524763 GEAR for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84446725 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84814798 COVER - this part has been superceded by 86539148 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	86539148 COVER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84446727 GEAR for FX30/40/50/60 Z= 29 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84446728 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84458463 CASING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84446730 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84446714 PLUG - this part has been superceded by 87524783 , Serial Range: -C469 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	87524783 PLUG for FX30/40/50/60 , Start Serial: D470 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84446732 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	43151 BOLT,Hex, M12 x 20, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
28	84446733 O-RING,129.77mm ID x 3.53mm Width for FX30/40/50/60 (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
29	84446734 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	120103 BOLT,Hex, M8 x 16, 8.8 - this part has been superceded by 16043224 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84446735 WASHER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
32	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
33	84814797 SHIM for FX30/40/50/60 , Serial Range: -C469 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84449859 SHIM for FX30/40/50/60 , Start Serial: D470 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	87525521 SHIM for FX30/40/50/60 , Start Serial: D470 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	86511315 WASHER,M8 x 16 x 1.6 - this part has been superceded by 86624184 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	86511326 WASHER,M16 x 30 x 3 - this part has been superceded by 80299 , Start Serial: D470 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd , Start Serial: D470 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 , Start Serial: D470 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
38	336199 BOLT,Hex, M8 x 12, 8.8, Full Thd - this part has been superceded by 16043024 , Start Serial: D470 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	16043024 BOLT for FX30/300/375/40/450/50/60 , Start Serial: D470 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	84446731 PLUG for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
