FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	BEARING ASSY,40 mm ID x 80 mm OD x 36.3 mm
2	SPACER
3	BEARING ASSY
4	SPACER
5	WASHER,M16 x 45 x 6, HT
6	BOLT,Hex, M16 x 70, 8.8
7	BOLT,Hex, M16 x 160, 8.8
8	SNAP RING,M40, Ext
9	BELLEVILLE WASHER,M10
10	HEX SOC SCREW,Hex Soc Hd, M10 x 35, 12.9
10	SCREW,Hex, M10 x 35.00mm, Cl 8.8, ZND
11	BELLEVILLE WASHER,Belleville, M12
12	BOLT,Hex, M12 x 120, 8.8
13	ADJUSTING PLATE
14	LUBE NIPPLE
15	SEALING WASHER
16	BOLT,Hex, M10 x 80, 8.8
16	BOLT,Hex, M10 x 80, 8.8
17	NUT,M10 x 1.5, Cl 8
18	NOT SERVICED SEPARATELY
19	STUD
20	PLATE
20	PLATE
21	BOLT,Hex, M10 x 35, 8.8, Full Thd
22	BELLEVILLE WASHER,M10

MalpasDirect - Replacement Tractors Parts

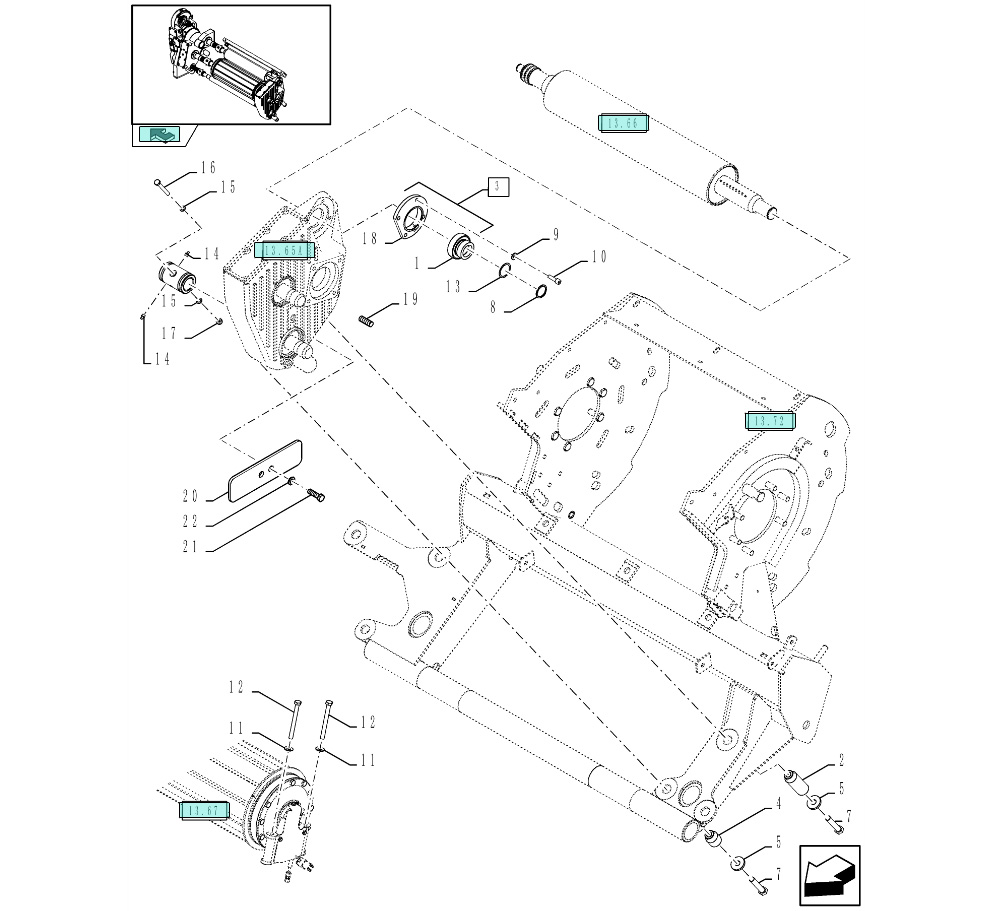

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	212609 BEARING ASSY,40 mm ID x 80 mm OD x 36.3 mm for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84443494 SPACER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84443539 BEARING ASSY - this part has been superceded by 212609 (1, 18) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84443523 SPACER for FX30/40/50/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	86592702 WASHER,M16 x 45 x 6, HT for FX28/30/38/40/48/50/60 (Job Qty: 6) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	2
6	120092 BOLT,Hex, M16 x 70, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
7	371221 BOLT,Hex, M16 x 160, 8.8 for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	370006 SNAP RING,M40, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
9	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	25
10	86566100 HEX SOC SCREW,Hex Soc Hd, M10 x 35, 12.9 for FX30/40/50/60 , Serial Range: -C269 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
10	81869630 SCREW,Hex, M10 x 35.00mm, Cl 8.8, ZND for FX30/40/50/60 , Start Serial: D270 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
11	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
12	309308 BOLT,Hex, M12 x 120, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
13	84014578 ADJUSTING PLATE for FX30/40/50/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84439102 SEALING WASHER for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
16	129796A1 BOLT,Hex, M10 x 80, 8.8 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	120073 BOLT,Hex, M10 x 80, 8.8 - this part has been superceded by 129796A1 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	25
18	NSS NOT SERVICED SEPARATELY (Job Qty: 1)	-	-	-
19	84444797 STUD for FX30/40/50/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84446576 PLATE - this part is no longer serviced , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84448482 PLATE for FX30/40/50/60 , Start Serial: D270 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	9706704 BOLT,Hex, M10 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models , Start Serial: D270 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models , Start Serial: D270 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
