FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
2	PLATE
3	SCREW,Hex Soc Flat Hd, M12 x 40, 8.8
4	BELLEVILLE WASHER,Belleville, M12
5	NUT,M12, Cl 8
6	PIN
7	SHEAR BAR FX30
8	BELLEVILLE WASHER,M16
9	BOLT,Hex, M16 x 250, 8.8
10	BRASSPLATE-SHEARBAR
11	SUPPORT
12	SUPPORT
13	SPACER
14	BLOCK
15	BOLT
16	SUPPORT
17	SUPPORT
18	BOLT,Hex, M16 x 140, 8.8
18	BOLT,Hex, M16 x 150, 8.8
19	BOLT,Hex, M16 x 90, 8.8
20	BOLT,Hex, M16 x 50, 8.8
21	NUT,M16, Cl 8
22	SET OF RINGS
23	WASHER,M20
24	DISC
25	SPACER
26	BOLT,Hex, M12 x 70, 8.8
26	SCREW
27	SCREW,Hex, 3/4-16 x 4 1/4", G8
28	SENSOR-SHEARBAR
29	NUT
30	NUT,5/8"-11, G5

MalpasDirect - Replacement Tractors Parts

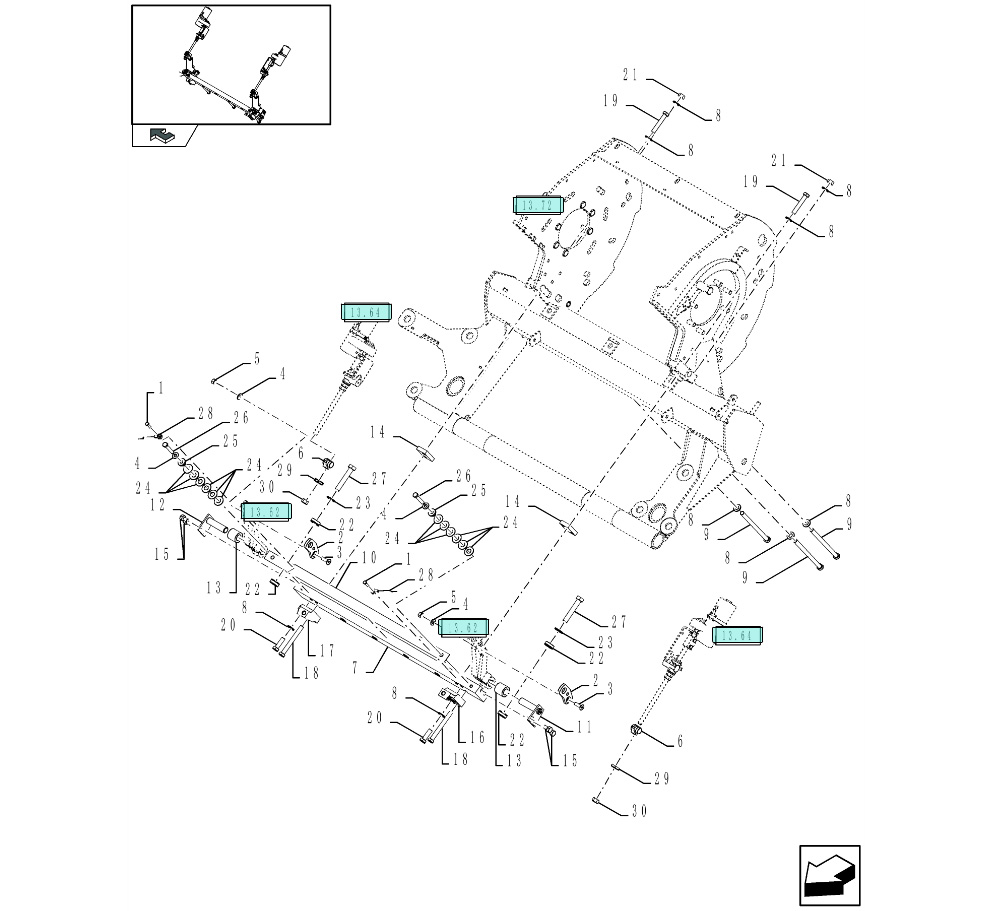

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
2	84443883 PLATE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	300502 SCREW,Hex Soc Flat Hd, M12 x 40, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	2
4	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
5	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	84037660 PIN for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84443881 SHEAR BAR FX30 for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	84100159 BOLT,Hex, M16 x 250, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84038417 BRASSPLATE-SHEARBAR for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	751296 SUPPORT for all New Holland FX Forager Harvesters models LH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	751297 SUPPORT for FX30/40/50/60 RH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84021005 SPACER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84443882 BLOCK for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	161697 BOLT for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84438407 SUPPORT for FX30/40/50/60 LH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84438408 SUPPORT for FX30/40/50/60 RH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	334967 BOLT,Hex, M16 x 140, 8.8 for all New Holland FX Forager Harvesters models , Serial Range: -C293 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
18	362573 BOLT,Hex, M16 x 150, 8.8 for FX28/30/38/40/48/50/58/60 , Start Serial: D294 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	350616 BOLT,Hex, M16 x 90, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
20	120090 BOLT,Hex, M16 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	84045639 SET OF RINGS for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
23	378247 WASHER,M20 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
24	861575 DISC for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	2
25	84038820 SPACER for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	9706717 BOLT,Hex, M12 x 70, 8.8 for all New Holland FX Forager Harvesters models , Serial Range: -C293,MAINTENANCE PART (Job Qty: 2) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	5
26	86977776 SCREW for FX30/40/50/60 , Start Serial: D294,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	280227 SCREW,Hex, 3/4-16 x 4 1/4", G8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
28	84058692 SENSOR-SHEARBAR for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84045296 NUT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	280374 NUT,5/8"-11, G5 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
				Add
