FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	GEARBOX
2	OIL SEAL
3	SNAP RING,M110, Int
4	SHIM KIT
5	BEARING ASSY
5	BEARING ASSY
6	GEAR
6	GEAR
7	OIL SEAL
8	CASING
8	CASING
9	SHAFT
10	BEARING ASSY
10	BEARING ASSY
11	OIL SEAL
12	SPACER
13	LOCKING PLATE
14	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
14	BOLT,Hex, M10 x 25, 8.8, Full Thd
15	FLANGE
16	CIRCLIP
17	OIL SEAL
18	BEARING ASSY
19	BUSHING
20	CIRCLIP
21	SHIM KIT
22	GEAR
22	GEAR
23	CAP COVER
24	SHIM KIT
25	PLUG
26	PLATE
27	COVER
28	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
29	BLEEDER
30	O-RING
31	SHIM
32	NOT SERVICED
33	PLUG,1/2" Gas
33	PLUG,1/2" Gas
34	WASHER
35	SLEEVE
36	BUSHING
37	SEALING WASHER
37	SEALING WASHER
38	BOLT

MalpasDirect - Replacement Tractors Parts

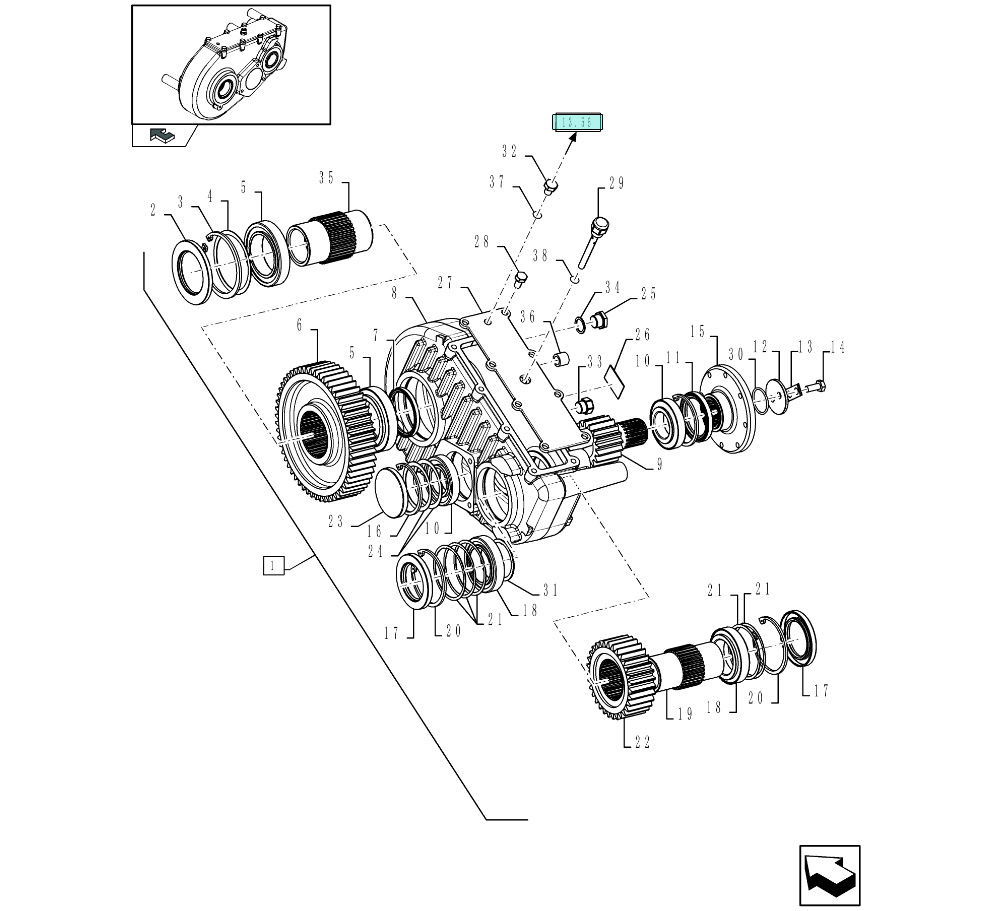

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84443142 GEARBOX for FX30/40/50/60 , Serial Range: (2-35) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84817153 OIL SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	301652 SNAP RING,M110, Int for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
4	84447166 SHIM KIT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	24903470 BEARING ASSY - this part has been superceded by 24903470 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84446772 BEARING ASSY - this part has been superceded by 24903470 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84446773 GEAR - this part has been superceded by 87520296 Z= 55, Serial Range: -C469 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	87520296 GEAR for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84817152 OIL SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84819372 CASING - this part has been superceded by 84458472 , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84458472 CASING for FX30/40/50/60 , Start Serial: D270 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84446774 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	26799970 BEARING ASSY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84819201 BEARING ASSY - this part has been superceded by 26799970 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84817151 OIL SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84446775 SPACER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84446776 LOCKING PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
14	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84446777 FLANGE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	920018136 CIRCLIP for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84817154 OIL SEAL for FX30/40/50/60 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
18	84446778 BEARING ASSY for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84446779 BUSHING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84446780 CIRCLIP for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84447167 SHIM KIT for FX30/40/50/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84446781 GEAR - this part has been superceded by 87526222 Z= 31, Serial Range: -C469 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	87526222 GEAR for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84446721 CAP COVER - this part has been superceded by 87523533 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84053921 SHIM KIT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84446731 PLUG for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84446730 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84446782 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
29	84446783 BLEEDER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84817156 O-RING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84100769 SHIM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	NS NOT SERVICED (Job Qty: 1)	-	-	-
33	84320005 PLUG,1/2" Gas - this part has been superceded by 322496550 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	322496550 PLUG,1/2" Gas for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84446735 WASHER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
35	84446771 SLEEVE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	84054849 BUSHING for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	355607 SEALING WASHER - this part has been superceded by 87801445 SEALRING, Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	87801445 SEALING WASHER for all New Holland FX Forager Harvesters models SEALRING, Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	87526223 BOLT for FX30/40/50/60 , Start Serial: D470 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
