FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	NOT SERVICED
2	SUPPORT
3	SPACER
4	BEARING HOUSING
5	SEALING RING
6	ROLLER BEARING,45 mm ID x 85 mm OD x 23 mm
7	SEALING RING
8	FLANGE
9	KNIFE
10	KNIFE
11	BELLEVILLE WASHER,M10
12	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
12	BOLT,Hex, M10 x 25, 8.8, Full Thd
13	SCREW,Hex Soc Flat Hd, M8 x 16, 8.8
13	SCREW,Hex Soc Flat Hd, M8 x 16, 8.8
14	STUD
15	SHAFT
15	SHAFT
16	SHAFT
17	NUT,M10, Cl 8
18	BOLT
19	LUBE NIPPLE
20	CLAMP
21	HYD CONNECTOR
21	HYD CONNECTOR
22	TUBE,6 mm OD
22	LARGE HOSE
23	BUSHING
24	SENSOR
24	SENSOR
25	BUSHING
26	BUSHING
27	HYD CONNECTOR
28	3 WAY CONNECTION
29	ELBOW
30	BOLT,Hex, M6 x 20, 8.8
31	BELLEVILLE WASHER,M6
32	SEALING WASHER
32	SEALING WASHER

MalpasDirect - Replacement Tractors Parts

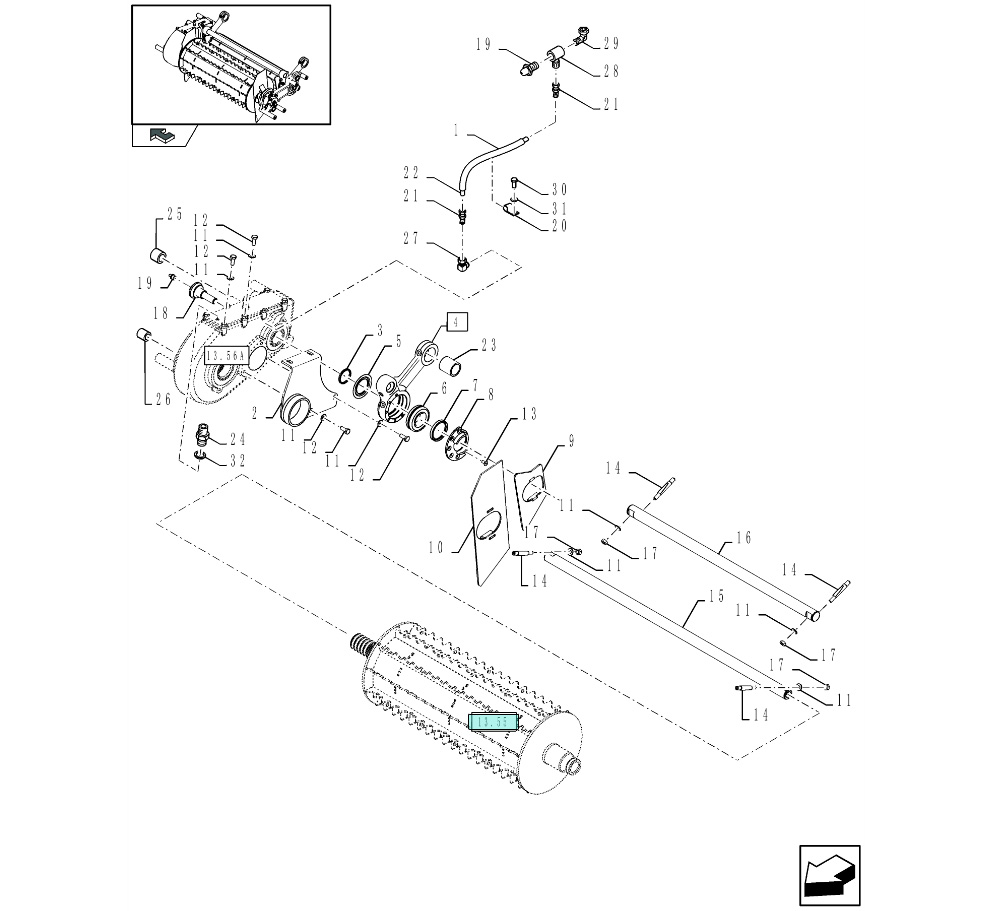

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	NS NOT SERVICED SHEET L= 0.44 M (Job Qty: 1)	-	-	-
2	84099412 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84099413 SPACER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84438411 BEARING HOUSING for FX30/40/50/60 RH (23) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	330284 SEALING RING for FX30/40/50/60 SEALRING (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
6	84007335 ROLLER BEARING,45 mm ID x 85 mm OD x 23 mm for FX30/40/50/60 (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
7	84443164 SEALING RING for FX30/40/50/60 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
8	84438417 FLANGE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84099419 KNIFE for FX30/40/50/60 RH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84444770 KNIFE for FX30/40/50/60 RH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
12	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	14441927 SCREW,Hex Soc Flat Hd, M8 x 16, 8.8 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84099422 SCREW,Hex Soc Flat Hd, M8 x 16, 8.8 - this part has been superceded by 14441927 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84989980 STUD for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84442454 SHAFT - this part has been superceded by 84054845 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84054845 SHAFT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84443149 SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
18	84443162 BOLT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	9503928 CLAMP - this part has been superceded by 84818441 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	47459296 HYD CONNECTOR (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84037349 HYD CONNECTOR - this part has been superceded by 47459296 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84053532 TUBE,6 mm OD - this part has been superceded by 84078092 D= 6, L= 0.52 M, Serial Range: -C373 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84400089 LARGE HOSE - this part is no longer serviced HOSE,LARGE D= 6, L= 0.52 M, Start Serial: D374 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	210088 BUSHING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	47430625 SENSOR - this part has been superceded by 47430625 SPEED (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84058860 SENSOR - this part has been superceded by 47430625 SPEED (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84054849 BUSHING for FX30/40/50/60 , Serial Range: -C277 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84444772 BUSHING for FX30/40/50/60 , Serial Range: -C277 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84819212 HYD CONNECTOR - this part has been superceded by 84078411 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84042354 3 WAY CONNECTION for FX30/300/375/40/450/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84037391 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
31	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
32	355607 SEALING WASHER - this part has been superceded by 87801445 SEALRING, Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	87801445 SEALING WASHER for all New Holland FX Forager Harvesters models SEALRING, Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
