FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	FRAME
2	WEAR PLATE
2	WEAR PLATE
3	WEAR PLATE
3	WEAR PLATE
3	WEAR PLATE
4	WEAR PLATE
5	WEAR PLATE
6	WEAR PLATE
7	COTTER PIN
8	PIN
9	SCREW
10	BOLT
11	PLATE
12	PLATE
13	PLATE
14	PLATE
15	SUPPORT
16	SUPPORT
17	SPACER
18	COVER
19	PLATE
20	BOLT,Hex, M16 x 50, 8.8
21	EYEBOLT
22	CLEVIS PIN,M16 x 55
23	COTTER PIN,M4 x 25
23	COTTER PIN,M4 x 25
23	COTTER PIN,M4 x 25 (pack of 10)
24	WASHER,M17 x 50
25	NUT,M16, Cl 8
26	PLATE
27	CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd
27	CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd
28	BELLEVILLE WASHER,M8
29	NUT,M8, Cl 8
30	BELLEVILLE WASHER,M10
31	BOLT,Hex, M10 x 30, 8.8, Full Thd
32	CARRIAGE BOLT
33	CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd
34	NUT,M10, Cl 8
35	PLATE
36	WASHER,M10 x 34 x 3
37	BELLEVILLE WASHER,Belleville, M12
38	BOLT,Hex, M12 x 35, 8.8, Full Thd
39	BOLT,Hex, M12 x 50, 8.8
40	BELLEVILLE WASHER,M16
41	CHAIN (AG)
42	RING
43	SCREW,Hex, M6 x 16, Cl 8.8, Full Thd
44	BELLEVILLE WASHER,M6
45	SPACER
46	SCREW,Hex Cap, M12 x 1.75 x 45.00mm, Cl 8.8, ZND
47	NUT,M12, Cl 8

MalpasDirect - Replacement Tractors Parts

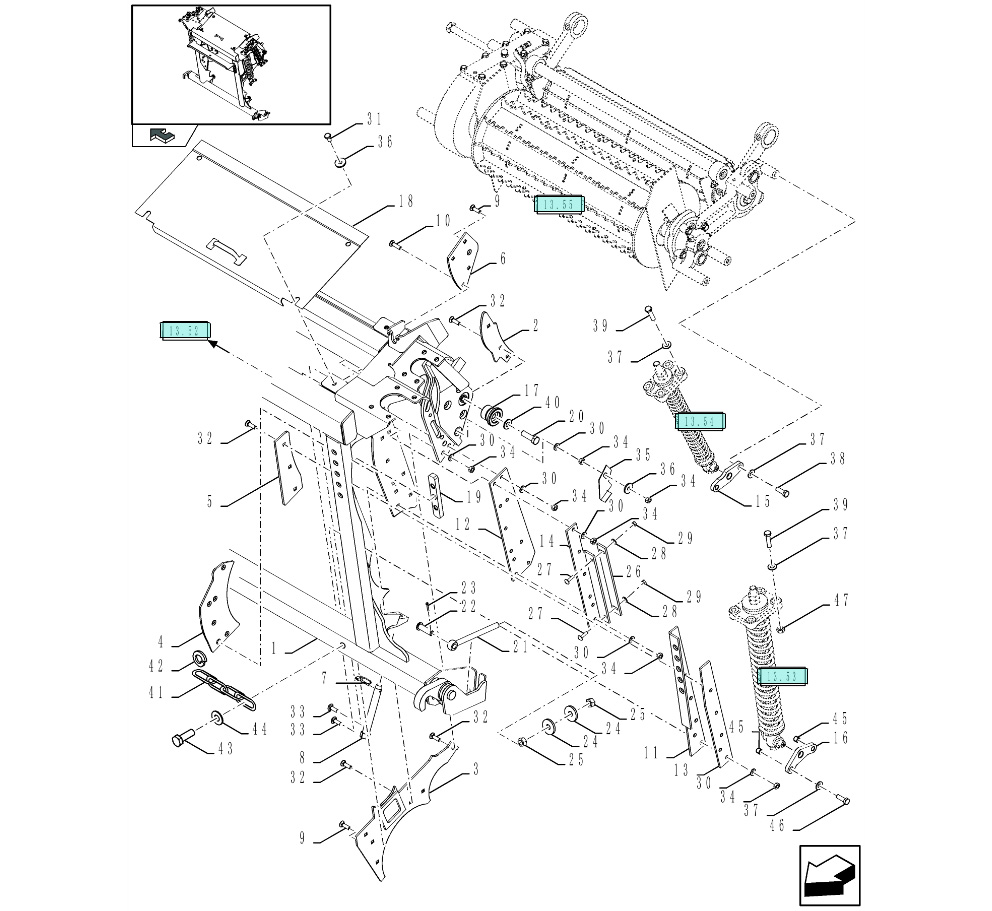

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84443139 FRAME for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84436172 WEAR PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84099356 WEAR PLATE - this part has been superceded by 84436172 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84098847 WEAR PLATE - this part has been superceded by 84446175 , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84446175 WEAR PLATE for FX30/40/50/60 , Serial Range: -F270389 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84460181 WEAR PLATE for FX30/40/50/60 , Start Serial: D390 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84099357 WEAR PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84098837 WEAR PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84443169 WEAR PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9832679 COTTER PIN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84026700 PIN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84443703 SCREW for FX30/40/50/60 M10 x 25 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84443518 BOLT - this part has been superceded by 392127 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84099428 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84099469 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84099470 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84099468 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84099476 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84099477 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84054846 SPACER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84099478 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84446150 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	120090 BOLT,Hex, M16 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	84817718 EYEBOLT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	362528 CLEVIS PIN,M16 x 55 for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	83903970 COTTER PIN,M4 x 25 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	130007 COTTER PIN,M4 x 25 - this part has been superceded by 86523956 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	86523956 COTTER PIN,M4 x 25 (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84005115 WASHER,M17 x 50 for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
26	84446144 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	43465 CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd - this part has been superceded by 811-8030 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	811-8030 CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
29	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
31	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
32	84018214 CARRIAGE BOLT for all New Holland FX Forager Harvesters models M10 x 35 (Job Qty: AR) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	5
33	86512446 CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
34	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
35	84442853 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	140042 WASHER,M10 x 34 x 3 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	5
37	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
38	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
39	9706702 BOLT,Hex, M12 x 50, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	6
40	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
41	84448119 CHAIN (AG) for FX30/40/50/60 , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	84448120 RING for FX30/40/50/60 , Serial Range: -C269 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
43	86508568 SCREW,Hex, M6 x 16, Cl 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
45	84444773 SPACER - this part is no longer serviced , Serial Range: -C277 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
46	9628065 SCREW,Hex Cap, M12 x 1.75 x 45.00mm, Cl 8.8, ZND for FX28/30/38/40/48/50/58/60 , Serial Range: -C277 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
47	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
