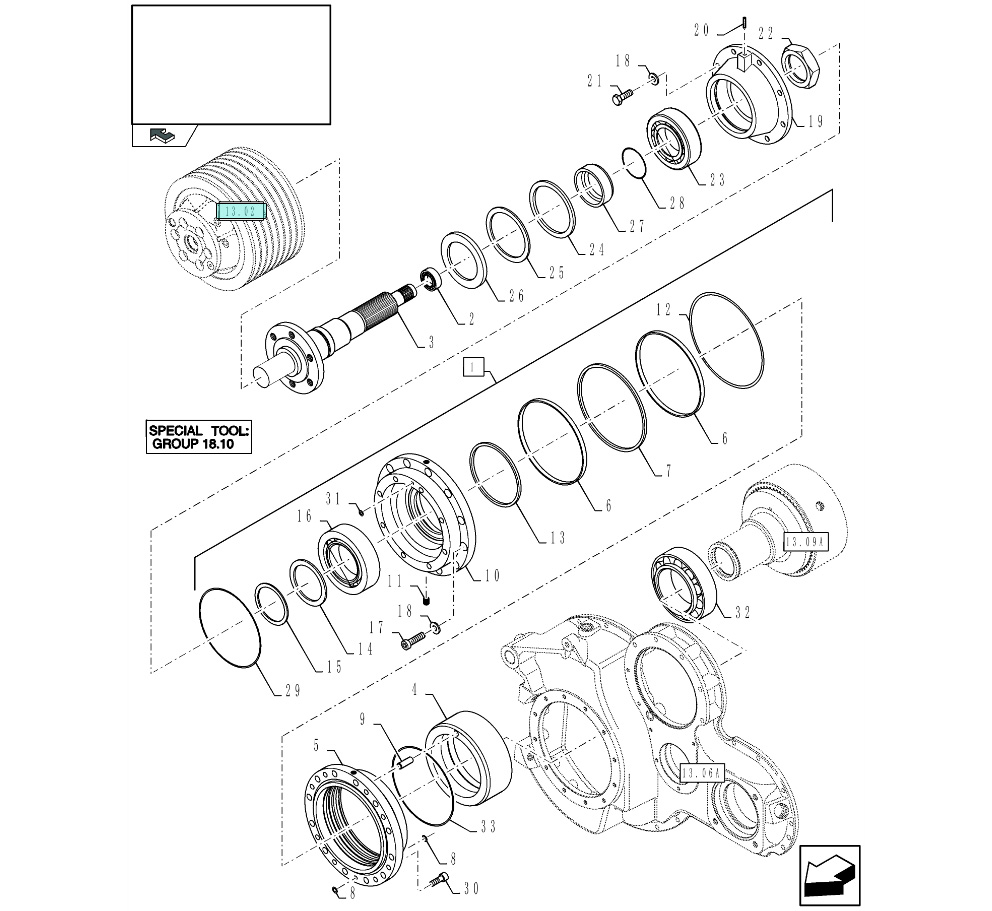

FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	CLUTCH
2	BEARING ASSY
2	BEARING ASSY
3	CONTROL SHAFT
4	PISTON
5	CYLINDER
6	RING
7	SEALING RING
8	O-RING,9.5mm ID x 1.5mm Width
9	PIN
10	COVER
11	PLUG
11	PLUG
12	O-RING,164mm ID x 3mm Width
13	SEALING RING
14	RING
15	SNAP RING,M80, Ext
15	SNAP RING,M80, Ext
16	ROLLER BEARING,80 mm ID x 140 mm OD x 35.25 mm
17	SCREW
17	SCREW
18	LOCK WASHER,M10
19	CAP
20	SCREW
21	BOLT,Hex, M10 x 30, 8.8, Full Thd
22	SLOTTED NUT
22	SLOTTED NUT
23	BEARING ASSY,65 mm ID x 120 mm OD x 31 mm
24	SNAP RING,M120, Int
25	WASHER
26	SEALING RING
27	BUSHING
28	O-RING,65mm ID x 2mm Width
29	O-RING,170mm ID x 3mm Width
30	SCREW,Hex Soc Hd, M10 x 25, 8.8
31	O-RING,5.5mm ID x 1.5mm Width
32	BEARING ASSY,100 mm ID x 150 mm OD x 24, 32 mm
33	O-RING,200MM ID x 3MM Width

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84817417 CLUTCH for FX30/40/50/60 (4 to 16, 29 to 32, Inc. fig. 13.09A) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84807778 BEARING ASSY - this part has been superceded by 9811397 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9811397 BEARING ASSY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84429109 CONTROL SHAFT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84807764 PISTON for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84807765 CYLINDER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84807756 RING for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84807755 SEALING RING for FX30/40/50/60 SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84443269 O-RING,9.5mm ID x 1.5mm Width for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84807763 PIN for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84807762 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84817554 PLUG - this part has been superceded by 190003962012 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	190003962012 PLUG for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84807757 O-RING,164mm ID x 3mm Width for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84807758 SEALING RING for FX30/40/50/60 SEALRING (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
14	84807761 RING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	370009 SNAP RING,M80, Ext - this part has been superceded by 80370009 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	80370009 SNAP RING,M80, Ext (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9832270 ROLLER BEARING,80 mm ID x 140 mm OD x 35.25 mm for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	14420521 SCREW M10 x 45 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84443268 SCREW - this part has been superceded by 14420521 M10 x 45 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	140028 LOCK WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 20) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
19	84429108 CAP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84443267 SCREW for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	10
22	80412387 SLOTTED NUT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	412387 SLOTTED NUT - this part has been superceded by 80412387 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84074503 BEARING ASSY,65 mm ID x 120 mm OD x 31 mm for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	412270 SNAP RING,M120, Int for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
25	84807759 WASHER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84443266 SEALING RING for FX30/40/50/60 SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84807760 BUSHING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84443264 O-RING,65mm ID x 2mm Width for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84443265 O-RING,170mm ID x 3mm Width for FX30/40/50/60 (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
30	120052 SCREW,Hex Soc Hd, M10 x 25, 8.8 for FX30/40/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
31	84818593 O-RING,5.5mm ID x 1.5mm Width for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	412284 BEARING ASSY,100 mm ID x 150 mm OD x 24, 32 mm for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84807754 O-RING,200MM ID x 3MM Width - this part has been superceded by 84442375 200x3 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
