FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	SEALING RING
1	SEALING RING
2	BEARING ASSY,55 mm ID x 95 mm OD x 29 mm
3	SHAFT
3	SHAFT
4	BELLEVILLE WASHER,M10
5	NUT,M10, Cl 8
6	BELLEVILLE WASHER,Belleville, M12
7	BOLT,Hex, M12 x 40, 8.8, Full Thd
8	FLANGE
8	FLANGE
8	FLANGE
9	LUBE NIPPLE,M6 x 1, 16mm lg
10	SCREW
11	WASHER,M41 x 60 x 1.52, HDN
12	SHAFT
13	NUT
14	NUT
14	THIN NUT,Thin, M16 x 1.5, Cl 04
15	FLANGE
16	WASHER,M6 x 17 x 3
17	FLANGE
17	FLANGE
18	BOLT,Hex, M12 x 70, 8.8
19	BOLT,Hex, M10 x 45, 8.8 (pack of 2)
19	BOLT,Hex, M10 x 45, 8.8
20	WASHER
21	SCREW
21	SCREW M10 X 30
22	PLATE
23	BELLEVILLE WASHER,M6
24	SCREW,Hex, M6 x 16, Cl 8.8, Full Thd
25	PULLEY
25	PULLEY
26	BEARING, NEEDLE
26	NEEDLE BEARING
27	BUSHING
28	STUD
28	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND

MalpasDirect - Replacement Tractors Parts

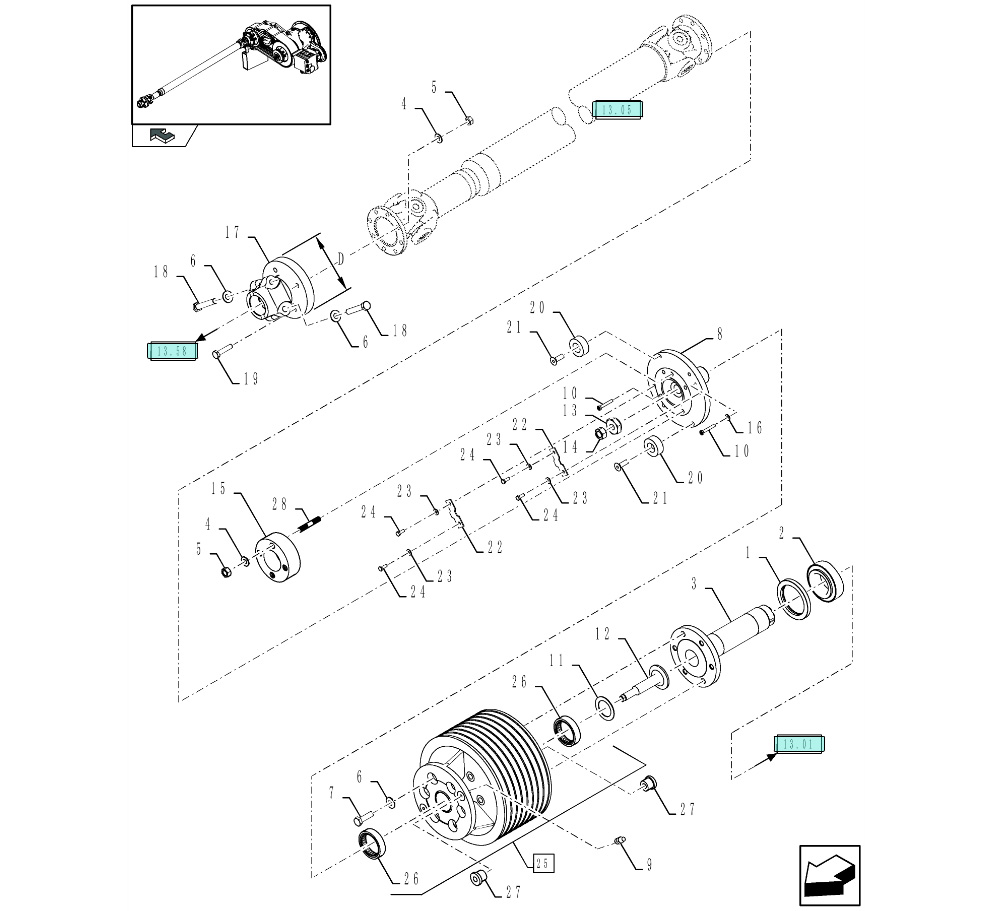

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	220021 SEALING RING - this part has been superceded by 384548 SEALRING,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	384548 SEALING RING SEALRING,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
2	699613 BEARING ASSY,55 mm ID x 95 mm OD x 29 mm for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	89811518 SHAFT - this part has been superceded by 9811518 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9811518 SHAFT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
5	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
6	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	10
7	86629541 BOLT,Hex, M12 x 40, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	5
8	84806928 FLANGE for FX30/40/50/60 , Serial Range: -C322 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84446295 FLANGE for FX30/40/50/60 , Start Serial: D323 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84454652 FLANGE for FX30/40/50/60 , Serial Range: -C322,PART OF PTO UPGRADE KIT 84454653 (C322) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
10	80536887 SCREW for all New Holland FX Forager Harvesters models Shear,MAINTENANCE PART (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
11	140061 WASHER,M41 x 60 x 1.52, HDN for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84012444 SHAFT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84014953 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	10791411 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	364164 THIN NUT,Thin, M16 x 1.5, Cl 04 - this part has been superceded by 10791411 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84989815 FLANGE for FX28/30/38/40/48/50/58/60 , Serial Range: -C322 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	86592710 WASHER,M6 x 17 x 3 for FX30/40/50/60 , Serial Range: -C322,PART OF PTO UPGRADE KIT 84454653 (C322) (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
17	89850296 FLANGE for all New Holland FX Forager Harvesters models (D=145MM), Serial Range: -C322 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84446412 FLANGE for FX30/40/50/60 (D=160MM), Start Serial: D323,ALSO PART OF PTO UPGRADE KIT 84454653 (C322) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	9706717 BOLT,Hex, M12 x 70, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	5
19	8900127036 BOLT,Hex, M10 x 45, 8.8 (pack of 2) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
19	325829 BOLT,Hex, M10 x 45, 8.8 - this part has been superceded by 8900127036 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84043324 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	80320772 SCREW - this part has been superceded by 320772 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	320772 SCREW M10 X 30 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	84440202 PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
24	86508568 SCREW,Hex, M6 x 16, Cl 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84806931 PULLEY - this part has been superceded by 84446105 (26, 27), Serial Range: -C322 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84446105 PULLEY for FX30/40/50/60 (26), Start Serial: D323 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	3057318R91 BEARING, NEEDLE for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84015464 NEEDLE BEARING - this part has been superceded by 3057318R91 MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84434534 BUSHING for FX28/30/38/40/48/50/58/60 , Serial Range: -C322 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84433367 STUD for FX28/30/38/40/48/50/58/60 , Serial Range: -C322 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
28	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models , Start Serial: D323 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
