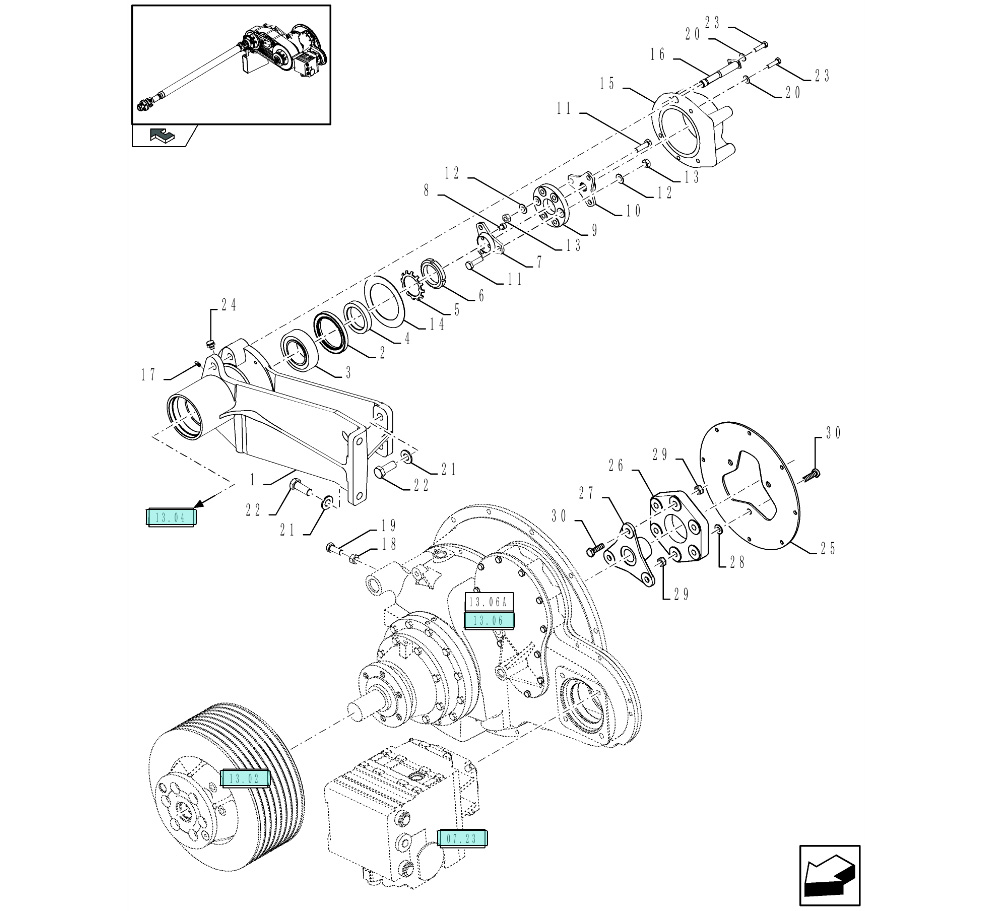

FX30 - (1/02-) Chopper Body

Key

Ref	Description
1	BEARING HOUSING
2	SEALING RING
2	SEALING RING
3	BEARING ASSY,55 mm ID x 95 mm OD x 29 mm
4	SPACER
4	SPACER
5	LOCKING PLATE
5	LOCKING PLATE
6	NUT
6	NUT
7	FLANGE
7	FLANGE
8	SCREW,Hex Soc Hd, M8 x 12, 8.8
8	SCREW,Hex Soc Hd, M8 x 12, 8.8
9	FLEXIBLE COUPLING
10	FLANGE
10	FLANGE
11	BOLT,Hex, M10 x 35, 8.8, Full Thd
12	BELLEVILLE WASHER,M10
13	NUT,M10, Cl 8
14	RING
15	BEARING HOUSING
16	ROLL PIN
17	LUBE NIPPLE,M6 x 1, 16mm lg
18	NUT,M12, Cl 8
19	BOLT,Hex, M12 x 30, 8.8, Full Thd
20	BELLEVILLE WASHER,M8
21	BELLEVILLE WASHER,M16
22	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
22	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
23	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
24	BREATHER
25	PLATE
25	PLATE
26	QUICK FEMALE COUPLING
26	QUICK FEMALE COUPLING
27	HUB
27	HUB
28	WASHER
28	WASHER
29	NUT,M24 x 2, Cl 8
29	NUT
30	BOLT,Hex, M24 x 2 x 80, 8.8
30	SCREW

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Chopper Body /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84806926 BEARING HOUSING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	220021 SEALING RING - this part has been superceded by 384548 SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	384548 SEALING RING SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	699613 BEARING ASSY,55 mm ID x 95 mm OD x 29 mm for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	89811516 SPACER - this part has been superceded by 9811516 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9811516 SPACER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84446406 LOCKING PLATE - this part has been superceded by 84447489 , Serial Range: -C265 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84447489 LOCKING PLATE for FX30/40/50/60 , Start Serial: D266 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	87490618 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
6	9513020 NUT - this part has been superceded by 87490618 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	89811515 FLANGE - this part has been superceded by 9811515 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9811515 FLANGE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	412697 SCREW,Hex Soc Hd, M8 x 12, 8.8 - this part has been superceded by 14306120 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	14306120 SCREW,Hex Soc Hd, M8 x 12, 8.8 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9811514 FLEXIBLE COUPLING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9811517 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	89811517 FLANGE - this part has been superceded by 9811517 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	9706704 BOLT,Hex, M10 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	25
13	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
14	84026074 RING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84806924 BEARING HOUSING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84017728 ROLL PIN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
18	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
19	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
20	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	1
21	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
24	46566 BREATHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84057912 PLATE for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84023586 PLATE for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84057788 QUICK FEMALE COUPLING for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84023585 QUICK FEMALE COUPLING for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84057909 HUB for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	9514951 HUB for FX30/40/50/60 FOR FX30-40-50 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84061017 WASHER for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84023555 WASHER for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	300355 NUT,M24 x 2, Cl 8 for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
29	89833396 NUT for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
30	84061021 BOLT,Hex, M24 x 2 x 80, 8.8 for FX28/30/38/40/48/50/58/60 FOR FX60 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	89833397 SCREW for all New Holland FX Forager Harvesters models FOR FX30-40-50 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
