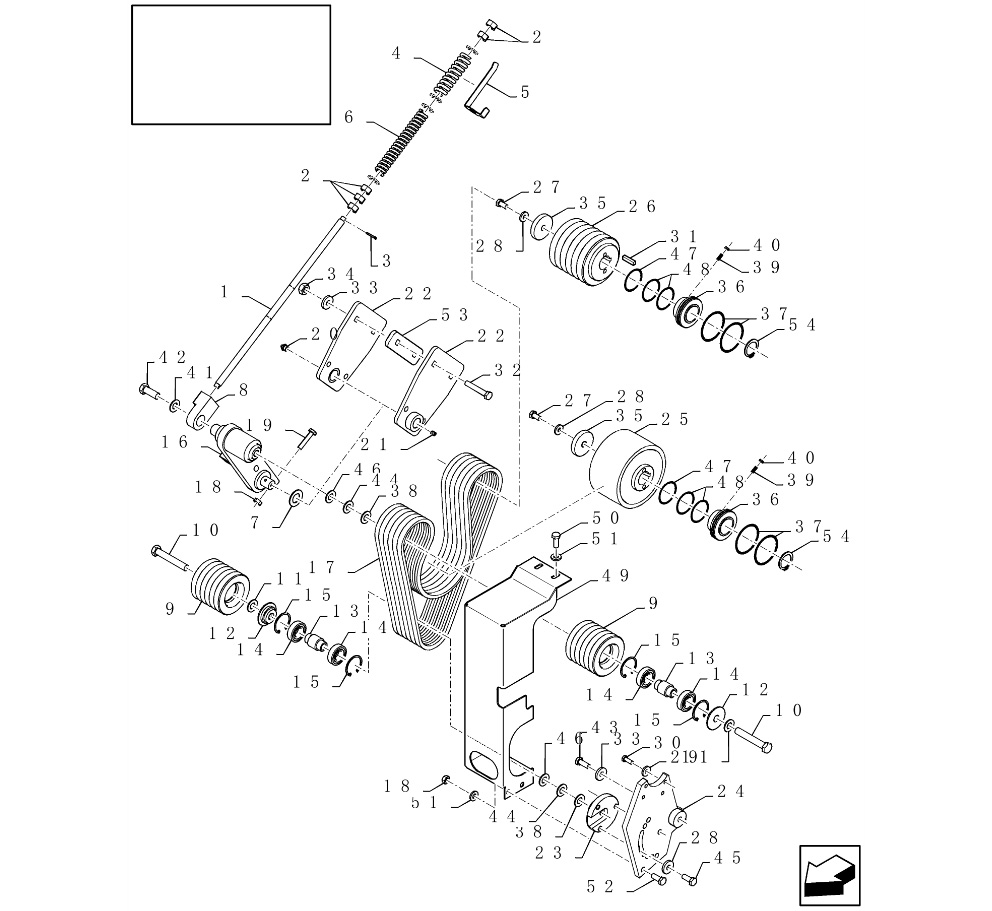

FX30 - (1/02-) 18.87529427[12] - DIA KIT : CROP PRO PLUS BELT DRIVE - 99 TEETH (CPP READY MACHINES)

Key

Ref	Description
	DIA KIT, HARVESTER
1	ROD
2	NUT,M16, Cl 8
3	COTTER PIN
4	SPRING
5	INDICATOR
6	SPRING
7	WASHER
8	PLATE
9	PULLEY
10	SCREW,Hex, M16 x 2 x 100.00mm, Cl 8.8, ZND
11	BELLEVILLE WASHER,M16
12	WASHER
13	SPACER
14	BALL BEARING
14	BALL BEARING,25 mm ID x 52 mm OD x 15 mm
15	CIRCLIP,M52, Int
15	CIRCLIP,M52, Int
16	PIVOTING ARM
17	BELTS-CPP(MAIZE) SP
18	NUT,M10, Cl 8
19	BOLT,Hex, M10 x 50, 8.8, Full Thd
20	LUBE NIPPLE
21	SET SCREW,Hex Soc, M6 x 5
22	PLATE
23	WASHER
24	PLATE
25	IDLER
26	DRIVEN PULLEY
27	SCREW,Hex Cap, M12 x 1.75 x 45.00mm, Cl 8.8, ZND
28	WASHER,M12 x 35 x 5, HT
29	BELLEVILLE WASHER,M8
30	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
31	KEY
32	CARRIAGE BOLT,Short NK, M12 x 80, Cl8.8
33	BELLEVILLE WASHER,Belleville, M12
34	NUT,M12, Cl 8
35	FLANGE
36	FLANGE
37	RING
37	SET OF RINGS
38	SHIM
39	SET SCREW,Hex Soc, M8 x 16, Cup Pt
40	NUT,M8, Cl 8
41	WASHER,M16
42	BOLT,Hex, M16 x 30, 8.8, Full Thd
43	BOLT,Hex, M12 x 60, 8.8
44	SHIM
45	BOLT,Hex, M12 x 35, 8.8, Full Thd
46	SHIM
47	ADJUSTING PLATE
48	SNAP RING,M40, Ext
49	PLATE
50	BOLT,Hex, M10 x 30, 8.8, Full Thd
51	BELLEVILLE WASHER,M10
52	SCREW,Hex, M10 x 40, 8.8, Full Thd
53	PLATE
54	SNAP RING,M35, Ext

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	87529427 DIA KIT, HARVESTER for FX30/40/50/60 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	84449636 ROD for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	80300409 COTTER PIN for FX30/300/375/40/450/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	445013 SPRING for FX28/30/300/375/38/40/450/48/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84452968 INDICATOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84818112 SPRING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9838305 WASHER for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	84449806 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	87528142 PULLEY for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	374889 SCREW,Hex, M16 x 2 x 100.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
11	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	84449568 WASHER for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84069869 SPACER for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84188095 BALL BEARING for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	443898 BALL BEARING,25 mm ID x 52 mm OD x 15 mm (this part has been superseded) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	370011 CIRCLIP,M52, Int - this part has been superceded by 33915 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	33915 CIRCLIP,M52, Int (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
16	84449580 PIVOTING ARM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	87531466 BELTS-CPP(MAIZE) SP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
19	120113 BOLT,Hex, M10 x 50, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
20	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84012755 SET SCREW,Hex Soc, M6 x 5 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	84449309 PLATE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84449571 WASHER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	87328401 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	87528141 IDLER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	87528145 DRIVEN PULLEY for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	9628065 SCREW,Hex Cap, M12 x 1.75 x 45.00mm, Cl 8.8, ZND for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
28	86592701 WASHER,M12 x 35 x 5, HT for FX28/30/38/40/48/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
29	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
30	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	10
31	360956 KEY for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
32	300662 CARRIAGE BOLT,Short NK, M12 x 80, Cl8.8 for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
33	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	10
34	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
35	84449449 FLANGE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	84449346 FLANGE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	9850345 RING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	89850345 SET OF RINGS - this part has been superceded by 9850345 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	87524775 SHIM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	300477 SET SCREW,Hex Soc, M8 x 16, Cup Pt for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
40	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
42	43167 BOLT,Hex, M16 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
43	9706693 BOLT,Hex, M12 x 60, 8.8 for FX30/300/375/40/450/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
44	87524773 SHIM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
46	87524771 SHIM for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	84014578 ADJUSTING PLATE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
48	370006 SNAP RING,M40, Ext for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	5
49	87516456 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
50	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
51	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
52	120068 SCREW,Hex, M10 x 40, 8.8, Full Thd for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
53	87338233 PLATE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
54	370004 SNAP RING,M35, Ext - this part has been superceded by 11068376 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
