FX30 - (1/02-) 18.84101672[01] - DIA KIT : GRASS PLATE - CROP PRO PLUS

Key

Ref	Description
	DIA KIT, HARVESTER
1	BOLT,Hex, M12 x 30, 8.8, Full Thd
2	PIN
3	BELLEVILLE WASHER,Belleville, M12
4	NUT,M12, Cl 8
5	TIE-ROD
6	SPRING
7	EYEBOLT
8	ADJUSTING PLATE
9	BOLT,Hex, M8 x 50, 8.8
10	PLATE
11	FRAME
12	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
13	HINGE
14	BELLEVILLE WASHER,M8
15	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
16	PLUG
16	PLUG
17	BELLEVILLE WASHER,M10
18	CRANKED HANDLE
19	COTTER PIN,M3.2 x 25
20	GUIDE
21	SPRING
22	WASHER,M12 x 24 x 2.5
22	WASHER,M12 x 24 x 2.5
23	PLATE
24	COTTER PIN
25	BOLT,Hex, M10 x 25, 8.8, Full Thd
25	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
26	NUT,M10, Cl 8
27	LUBE NIPPLE,M6 x 1, 16mm lg
28	RING
29	BUSHING
30	SEALING RING
31	SHIM
32	SNAP RING,M70, Ext
33	COVER
	84036534

MalpasDirect - Replacement Tractors Parts

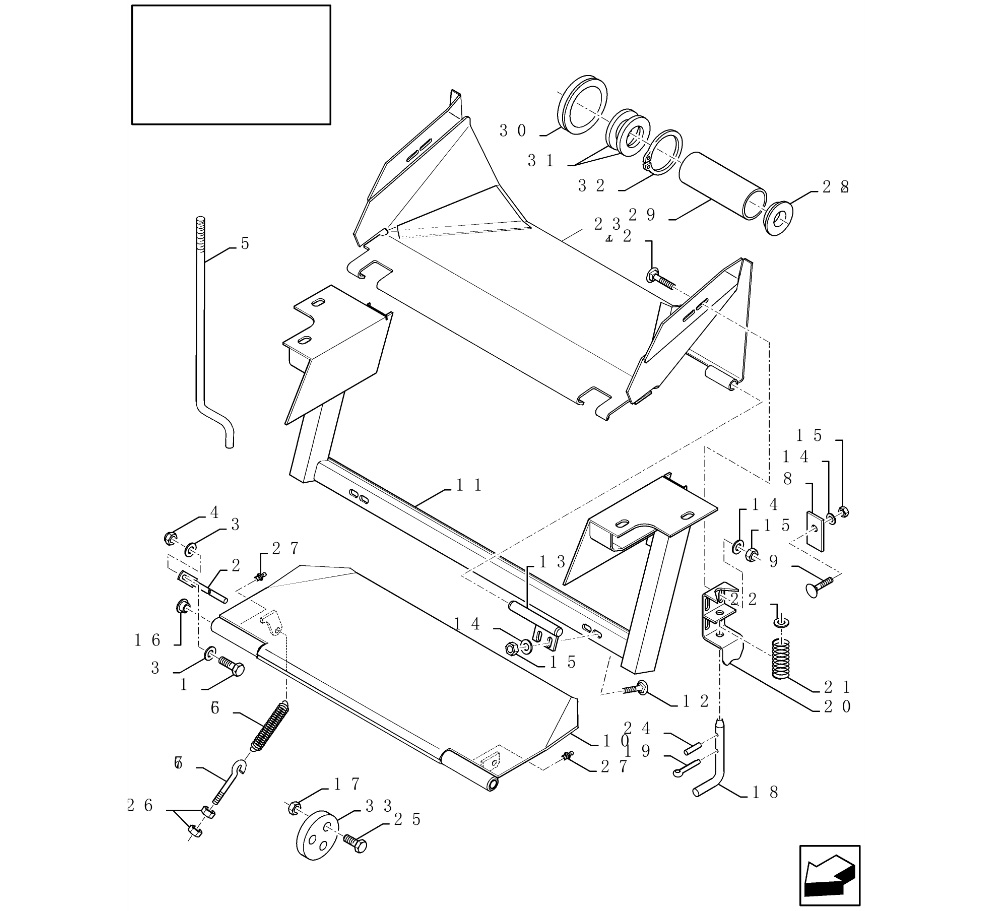

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84101672 DIA KIT, HARVESTER for FX30/40/50/60 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
2	84045688 PIN for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
4	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	84026014 TIE-ROD for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	86539120 SPRING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	86599359 EYEBOLT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84069989 ADJUSTING PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	87564633 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84334440 FRAME for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	10
13	84014619 HINGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	1
15	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	355551 PLUG - this part has been superceded by 610662 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	610662 PLUG for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	25
18	84014616 CRANKED HANDLE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	130004 COTTER PIN,M3.2 x 25 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	84017507 GUIDE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	226829 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	86511324 WASHER,M12 x 24 x 2.5 - this part has been superceded by 87364 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	87364 WASHER,M12 x 24 x 2.5 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
23	87368293 PLATE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	370539 COTTER PIN for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
26	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
27	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
28	84015775 RING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84446261 BUSHING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84068419 SEALING RING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
31	84068394 SHIM for FX28/30/38/40/48/50/58/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	300636 SNAP RING,M70, Ext for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
33	84435498 COVER for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	84036534 - this part is no longer serviced (Job Qty: 0,01) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
