FX30 - (1/02-) 18.84101619[02] - DIA KIT : HIGH CAPACITY AUXILIARY HYDRAULIC

Key

Ref	Description
	DIA KIT, HARVESTER
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
2	ENGINE OIL PUMP
3	HYD CONNECTOR
4	FLEXIBLE HOSE
5	FLEXIBLE HOSE
6	ELBOW
6	ELBOW
7	SUPPORT
8	HYD CONNECTOR
9	FLEXIBLE HOSE
10	CLAMP
11	HEX SOC SCREW,M10 x 50
12	NUT,M10, Cl 8
13	SUPPORT
14	HYD CONNECTOR
15	NUT,M16, Cl 8
16	BELLEVILLE WASHER,M16
17	WASHER,M16
18	CLAMP
19	HYDRAULIC VALVE
20	HYDRAULIC VALVE
21	QUICK MALE COUPLING
22	DUST CAP
23	WASHER
24	FLEXIBLE HOSE
25	STRAP
25	STRAP (pack of 10)
26	WIRE HARNESS
27	BRACKET
28	BELLEVILLE WASHER,M10
29	FLANGE
30	HYD CONNECTOR
31	HYD CONNECTOR
32	CONNECTING BLOCK
33	LOCK WASHER,M10
34	BOLT,Hex, M8 x 25, 8.8
35	BELLEVILLE WASHER,M8
36	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
37	SCREW,Cross Pan Hd, M3 x 16
38	LOCK WASHER,Serr, M3
39	NUT,M3, Cl 8 (pack of 10)
39	NUT,M3, Cl 8
40	BOLT,Hex, M10 x 30, 8.8, Full Thd
41	HYD CONNECTOR
42	SCREW,Hex, M6 x 60, 8.8
43	SUPPORT
44	CLAMP
45	NUT,M6, Cl 8
45	NUT M6 HEX
46	HYD. TUBE,303.8, 122.5 mm L
47	BELLEVILLE WASHER,M6
48	SCREW
49	CABLE TIE,M9 x 165 or M5 x 197 (pack of 50)
49	CABLE TIE,M9 x 165 or M5 x 197
50	WASHER,M10 x 24 x 2 Thk
	PROFILE
	SEALANT

MalpasDirect - Replacement Tractors Parts

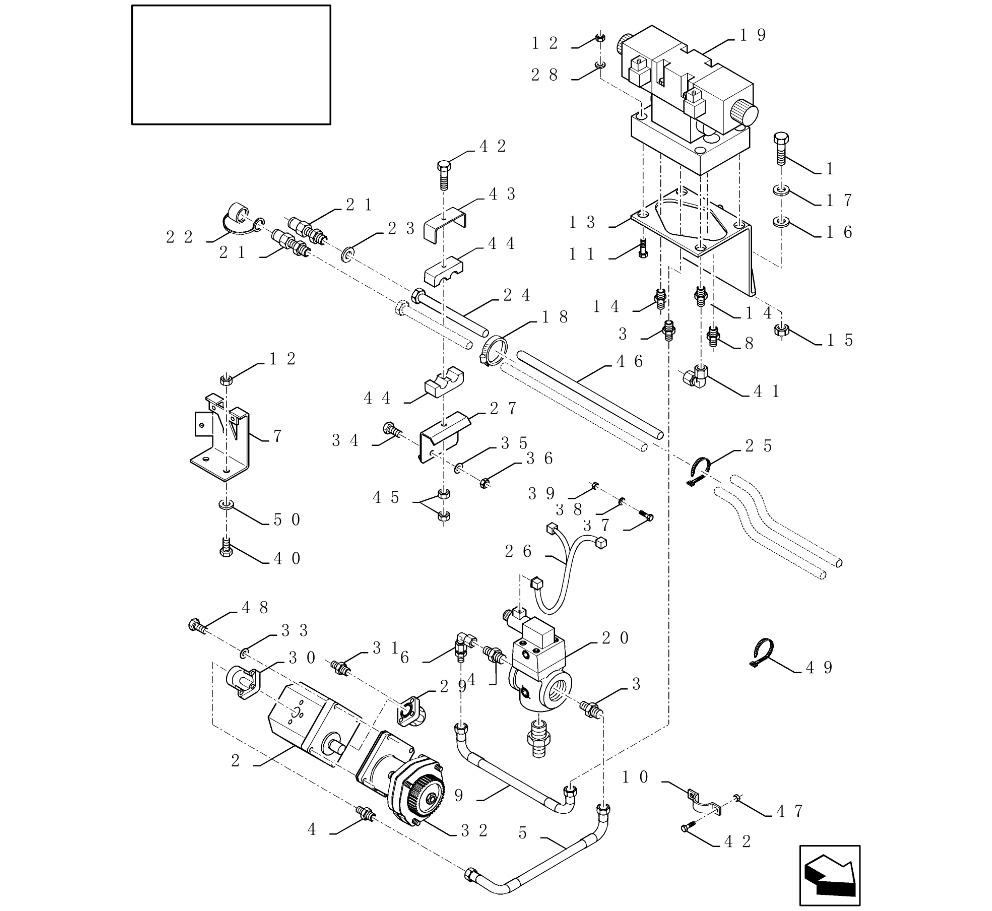

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84101619 DIA KIT, HARVESTER for FX30/40/50 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
2	84031793 ENGINE OIL PUMP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84036285 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84440644 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84440645 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	85826815 ELBOW (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84032976 ELBOW - this part has been superceded by 85826815 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84442071 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84036286 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84442351 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84041020 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84015950 HEX SOC SCREW,M10 x 50 - this part has been superceded by 991981 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
13	84442069 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	89835290 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
16	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
18	9513271 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84069154 HYDRAULIC VALVE - this part has been superceded by 84031799 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84039549 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84032982 QUICK MALE COUPLING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	266220 DUST CAP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	36622 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84440643 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	396718 STRAP - this part has been superceded by 86633352 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	529070 STRAP (pack of 10) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
26	84035515 WIRE HARNESS for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84442056 BRACKET for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	25
29	84031794 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	9813318 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84036282 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	84452061 CONNECTING BLOCK for FX30/40/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	140028 LOCK WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
34	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
35	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
36	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	86511816 SCREW,Cross Pan Hd, M3 x 16 for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	412547 LOCK WASHER,Serr, M3 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
39	1175064 NUT,M3, Cl 8 (pack of 10) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
39	86508812 NUT,M3, Cl 8 - this part has been superceded by 1175064 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
41	447770 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	338413 SCREW,Hex, M6 x 60, 8.8 for FX28/30/300/375/38/40/450/48/50/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
43	743320 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	457547 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	9706755 NUT,M6, Cl 8 - this part has been superceded by 86500688 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
46	84441448 HYD. TUBE,303.8, 122.5 mm L for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
48	84442157 SCREW for FX30/40/50 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
49	14560287 CABLE TIE,M9 x 165 or M5 x 197 (pack of 50) (Job Qty: 25) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
49	323597 CABLE TIE,M9 x 165 or M5 x 197 - this part has been superceded by 14560287 (Job Qty: 25) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
50	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
	401310 PROFILE for FX30/40/50/60 (Job Qty: 0,08) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	400981 SEALANT - this part has been superceded by 398094 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
