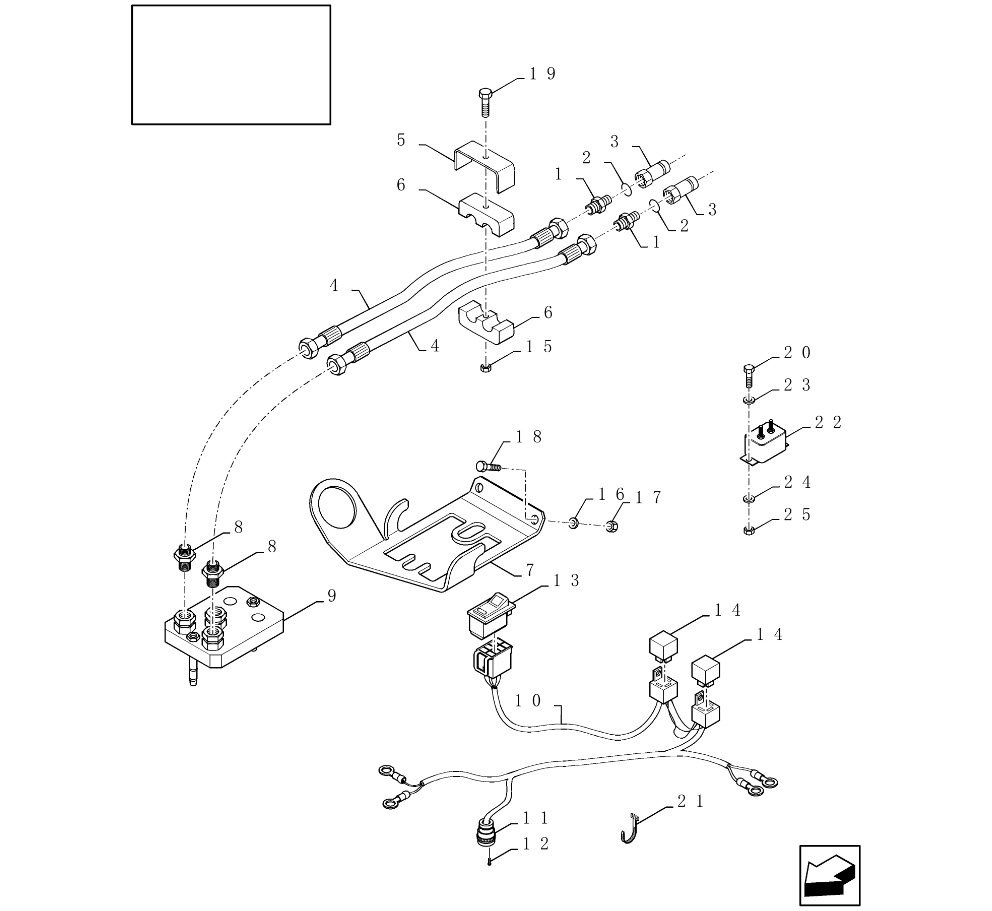

FX30 - (1/02-) 18.84101553[02] - DIA KIT : ADAPTOR KIT - COMBINE CORN HEADER

Key

Ref	Description
	DIA KIT, HARVESTER
1	HYD CONNECTOR
2	O-RING,0.644" ID x 0.087" Width
3	QUICK MALE COUPLING
3	QUICK MALE COUPLING
4	FLEXIBLE HOSE
5	SUPPORT
6	CLAMP
7	BRACKET
8	HYD CONNECTOR
9	QUICK MALE COUPLING
9	QUICK MALE COUPLING
9	QUICK MALE COUPLING
10	WIRE HARNESS
11	ELEC CONNECTOR,Female, 31 Pole
12	PLUG
13	TOGGLE SWITCH
14	RELAY
14	SWITCH, REMOTE CONTROL
15	NUT,M6 x 1, Cl 8.8
16	BELLEVILLE WASHER,M8
17	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
18	HEX SOC SCREW,Hex Soc Hd, M8 x 25, 12.9
19	SCREW,Hex, M6 x 45, 8.8
20	BOLT,Hex, M5 x 20, 8.8, Full Thd
21	CABLE TIE,M9 x 165 or M5 x 197
21	CABLE TIE,M9 x 165 or M5 x 197 (pack of 50)
22	FUSE
22	FUSE
23	WASHER,M5 x 18 x 2
24	BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN
25	NUT,M5, Cl 8 (pack of 5)
25	NUT,M5, Cl 8
	86556176

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84101553 DIA KIT, HARVESTER for FX30/40/50/60 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	395738 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	128825 O-RING,0.644" ID x 0.087" Width for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	86544945 QUICK MALE COUPLING - this part has been superceded by 87506450 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	87506450 QUICK MALE COUPLING (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84077435 FLEXIBLE HOSE for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	431941 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
6	430357 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	84459469 BRACKET for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84077400 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	47870721 QUICK MALE COUPLING - this part has been superceded by 47870721 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84580531 QUICK MALE COUPLING - this part has been superceded by 47870721 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84435011 QUICK MALE COUPLING - this part has been superceded by 47870721 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84448063 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84320884 ELEC CONNECTOR,Female, 31 Pole - this part has been superceded by 87711997 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84068583 PLUG for FX30/40/50/60 (Job Qty: 29) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
13	84019744 TOGGLE SWITCH for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84000651 RELAY - this part has been superceded by 86529089 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	86529089 SWITCH, REMOTE CONTROL for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	412152 NUT,M6 x 1, Cl 8.8 for FX30/40/50/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
16	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
17	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	9706749 HEX SOC SCREW,Hex Soc Hd, M8 x 25, 12.9 for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
19	86977790 SCREW,Hex, M6 x 45, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	120098 BOLT,Hex, M5 x 20, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
21	323597 CABLE TIE,M9 x 165 or M5 x 197 - this part has been superceded by 14560287 (Job Qty: 19) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	14560287 CABLE TIE,M9 x 165 or M5 x 197 (pack of 50) (Job Qty: 19) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	198445 FUSE - this part has been superceded by 86516909 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	86516909 FUSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	140182 WASHER,M5 x 18 x 2 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
24	322356 BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
25	10788811 NUT,M5, Cl 8 (pack of 5) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	86508813 NUT,M5, Cl 8 - this part has been superceded by 10788811 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	86556176 - this part is no longer serviced (Job Qty: 0,01) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
