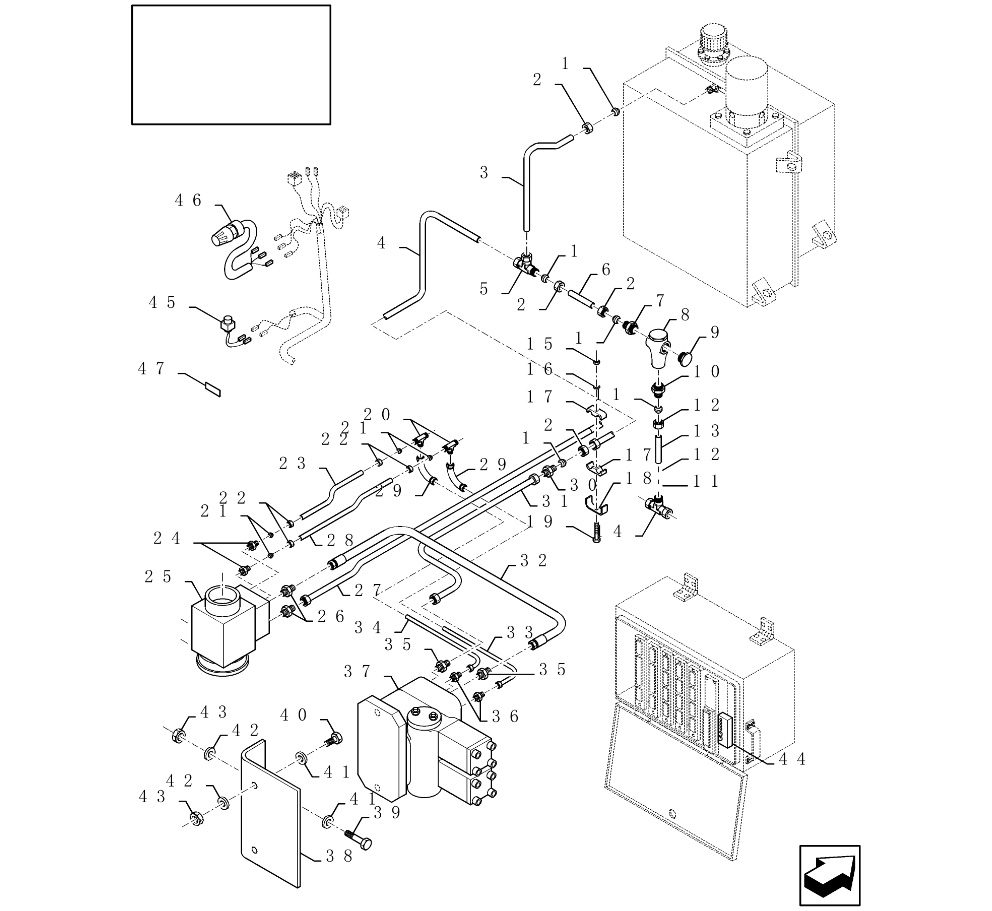

FX30 - (1/02-) 18.84020264[02] - DIA KIT : AUTOPILOT KIT - BASE UNIT

Key

Ref	Description
	DIA KIT, HARVESTER
1	FERRULE
2	TUBE NUT
3	HYD. TUBE
4	HYD. TUBE
5	3 WAY CONNECTION
6	HYD. TUBE,18 mm Diameter, 84 mm Length
7	HYD CONNECTOR
8	PRESSURE RELIEF VALVE
9	PLUG
10	PLUNGER
11	FERRULE
12	TUBE NUT,M24 x 1.5
13	DRIVE BUSHING
14	3 WAY CONNECTION
15	NUT,M6 x 1, Cl 8
16	WASHER,M6 x 12 x 1.6 Thk
17	CLAMP
18	SUPPORT
19	BOLT,Hex, M6 x 50, 8.8
20	3 WAY CONNECTION
21	FERRULE
22	TUBE NUT
23	HYD. TUBE
24	162888
25	HYDRAULIC VALVE
26	HYD CONNECTOR
27	HYD. TUBE
28	HYD. TUBE
29	ELBOW
30	HYD CONNECTOR
31	HYD. TUBE
32	FLEXIBLE HOSE
32	FLEXIBLE HOSE
33	HYD. TUBE,10 mm Diameter, 281.6, 86.3 mm Length
34	HYD. TUBE,10 mm Diameter, 266.6, 23 mm Length
35	HYD CONNECTOR
36	HYD CONNECTOR
36	HYD CONNECTOR
37	ELECTROMAGNET
38	SUPPORT
39	BOLT,Hex, M8 x 40, 8.8
39	BOLT,Hex, M8 x 40, 8.8 (pack of 10)
40	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
41	WASHER,M8
41	WASHER,M8 (pack of 10)
41	WASHER
42	BELLEVILLE WASHER,M8
43	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
44	ELECTRONIC CONTROL UNIT
45	9617220
46	9617222
47	SEAL
47	SEAL
	DECAL

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84020264 DIA KIT, HARVESTER for FX30/40/50/60 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	335168 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
2	335170 TUBE NUT for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84042535 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84042536 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	379431 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84043983 HYD. TUBE,18 mm Diameter, 84 mm Length for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	394373 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84017655 PRESSURE RELIEF VALVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	417006 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	384372 PLUNGER - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	335169 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	335171 TUBE NUT,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	360897 DRIVE BUSHING - this part is no longer serviced SPARE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	444325 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
16	86588450 WASHER,M6 x 12 x 1.6 Thk for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	430356 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
18	84814948 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
19	120056 BOLT,Hex, M6 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	395472 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	150014 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	86548975 TUBE NUT for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	84012115 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	162888 - this part is no longer serviced (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84439729 HYDRAULIC VALVE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	9513143 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84035361 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84012110 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	418284 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	458717 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84035363 HYD. TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	89815904 FLEXIBLE HOSE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	9815904 FLEXIBLE HOSE - this part has been superceded by 89815904 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84035367 HYD. TUBE,10 mm Diameter, 281.6, 86.3 mm Length for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84035365 HYD. TUBE,10 mm Diameter, 266.6, 23 mm Length for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	9850809 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	89813512 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	9813512 HYD CONNECTOR - this part has been superceded by 89813512 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	84019472 ELECTROMAGNET for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	9835245 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	43129 BOLT,Hex, M8 x 40, 8.8 - this part has been superceded by 16044024 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	16044024 BOLT,Hex, M8 x 40, 8.8 (pack of 10) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
41	378243 WASHER,M8 - this part has been superceded by 63707 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
41	63707 WASHER,M8 (pack of 10) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
41	86625263 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
42	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
43	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	84018170 ELECTRONIC CONTROL UNIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	9617220 - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
46	9617222 - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	80400987 SEAL (Job Qty: 0,06) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	400987 SEAL - this part has been superceded by 80400987 (Job Qty: 0,06) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	84021753 DECAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
