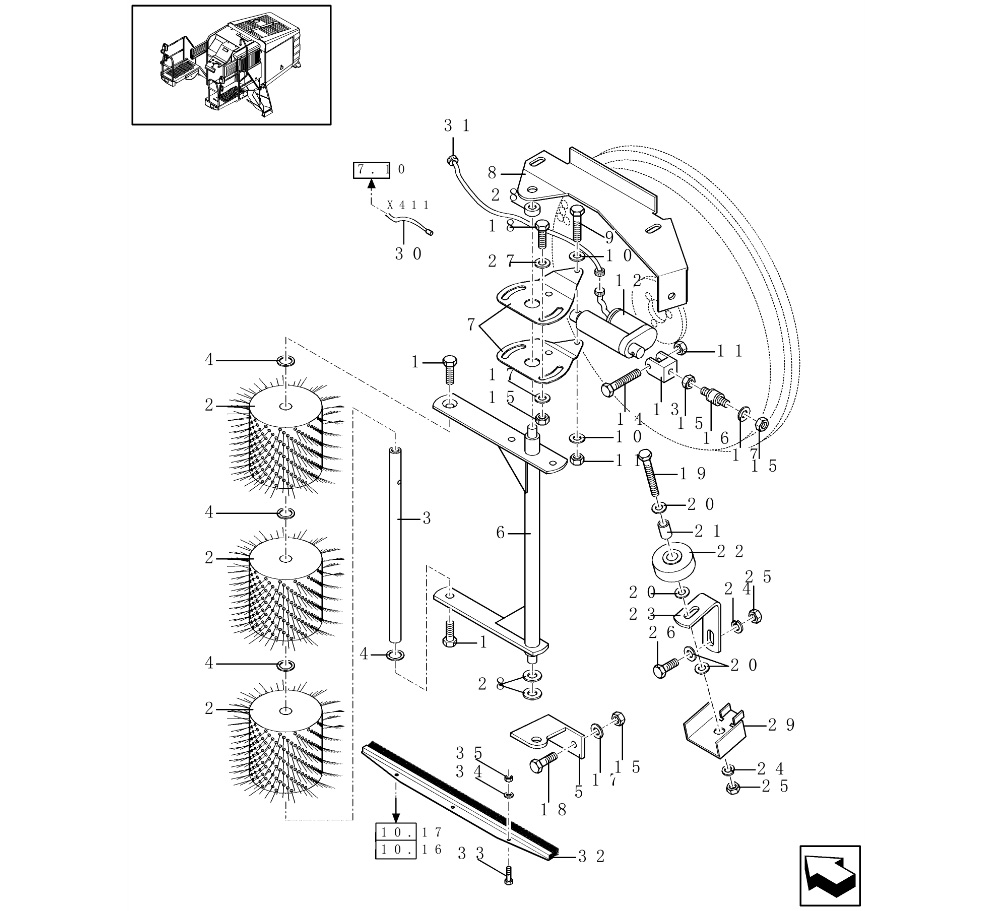

FX28 - (9/98-) Main Frame

Key

Ref	Description
1	SCREW,Hex Soc Flat Hd, M10 x 25, 8.8
2	COMMUTATOR BRUSH
3	SHAFT
4	WASHER
5	BRACKET
6	SUPPORT
7	COVER PLATE
8	SUPPORT
8	SUPPORT
8	SUPPORT
8	SUPPORT
9	BOLT,Hex, M6 x 50, 8.8
10	WASHER,M6
10	WASHER,M6
11	NUT,M6 x 1, Cl 8
12	ACTUATOR
12	ACTUATOR
12	ACTUATOR
13	SUPPORT
14	SCREW,Hex, M6 x 40, 8.8, Full Thd
15	NUT,M8, Cl 8
16	DAMPER
16	DAMPER
17	BELLEVILLE WASHER,M8
18	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
19	BOLT,Hex, M10 x 50, 8.8
20	WASHER,M10 x 24 x 2 Thk
21	SPACER
22	ROLLER
23	BRACKET
24	BELLEVILLE WASHER,M10
25	NUT,M10, Cl 8
26	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
27	WASHER,M8
27	WASHER,M8 (pack of 10)
27	WASHER
28	WASHER,M13 x 28 x 2 Thk
29	SHIELD
30	WIRE HARNESS
31	WIRE HARNESS
32	COMMUTATOR BRUSH
33	SCREW,Cross Pan Hd, M4 x 10
34	BELLEVILLE WASHER,Belleville, M4
35	NUT,M4, Cl 8
35	NUT,M4, Cl 8 (pack of 25)

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX28 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	393698 SCREW,Hex Soc Flat Hd, M10 x 25, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
2	84041623 COMMUTATOR BRUSH for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84032419 SHAFT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84042957 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	84077353 BRACKET for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84032410 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84041713 COVER PLATE for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84041739 SUPPORT for FX28/300/375/38/450/48/58 LH, Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84073428 SUPPORT for FX28/30/38/40/48/50/58/60 LH, Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84041740 SUPPORT for FX28/300/375/38/450/48/58 RH, Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84073430 SUPPORT for FX28/30/38/40/48/50/58/60 RH, Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	120056 BOLT,Hex, M6 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	140015 WASHER,M6 - this part has been superceded by 9824259 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9824259 WASHER,M6 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
11	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
12	84036177 ACTUATOR - this part has been superceded by 84036178 , Serial Range: -C135 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84036178 ACTUATOR , Serial Range: -C135 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84077516 ACTUATOR for FX28/30/38/40/48/50/58/60 , Start Serial: D136 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84026054 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	120102 SCREW,Hex, M6 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 14) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	393802 DAMPER for FX28/300/375/38/450/48/58 , Serial Range: -C217 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84057804 DAMPER for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 12) In Stock Shipping Costs...	Call Ex VAT	1
18	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
19	120069 BOLT,Hex, M10 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
20	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	921989 SPACER for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84041753 ROLLER for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84041762 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	25
25	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	10
26	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	378243 WASHER,M8 - this part has been superceded by 63707 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	63707 WASHER,M8 (pack of 10) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	86625263 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
28	378245 WASHER,M13 x 28 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
29	84062383 SHIELD for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84035381 WIRE HARNESS for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84035513 WIRE HARNESS for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	84432110 COMMUTATOR BRUSH for FX28/30/38/40/48/50/58/60 , Start Serial: D174,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	86585706 SCREW,Cross Pan Hd, M4 x 10 for FX28/30/38/40/48/50/58/60 , Serial Range: -F174177 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models , Serial Range: -F174177 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
35	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 , Serial Range: -F174177 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	57121 NUT,M4, Cl 8 (pack of 25) , Serial Range: -F174177 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
