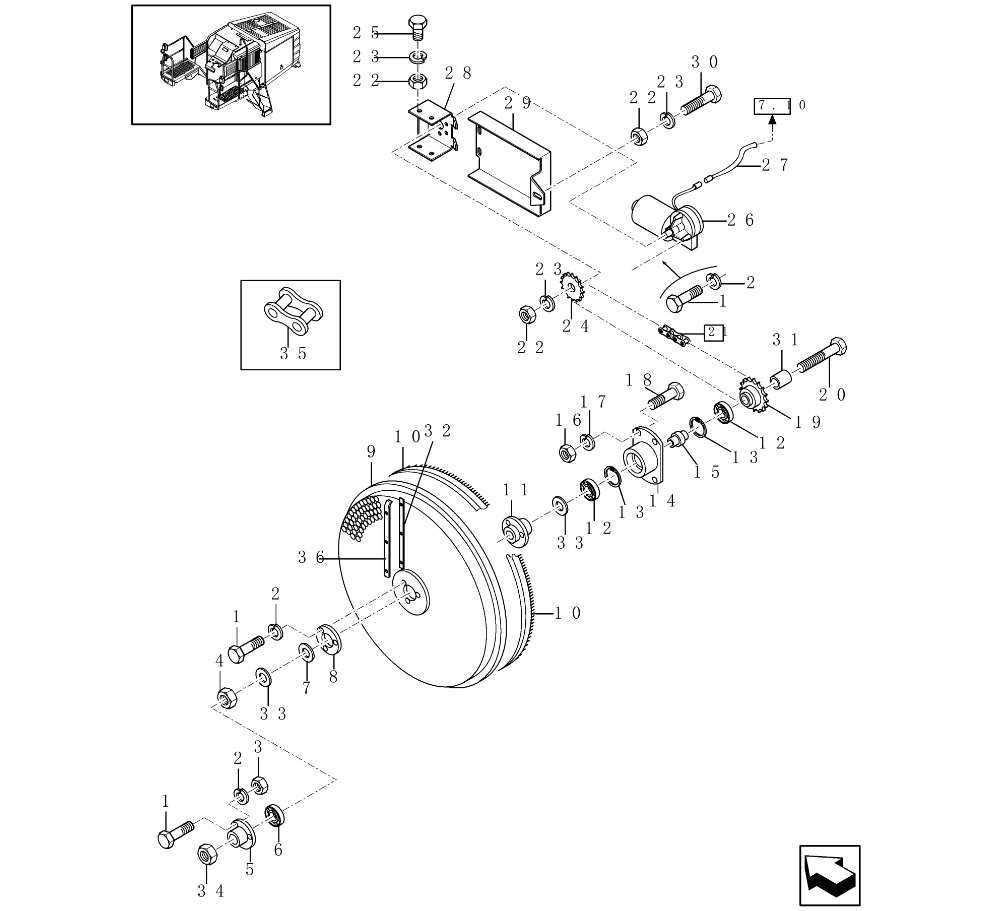

FX28 - (9/98-) Main Frame

Key

Ref	Description
1	BOLT,Hex, M6 x 16, 8.8
2	BELLEVILLE WASHER,M6
3	NUT,M6, Cl 10
3	NUT M6 HEX
4	THIN NUT,Thin, M16 x 2, Cl 04
4	THIN NUT,Thin, M16 x 2, Cl 04 (pack of 10)
5	FLANGE
6	BALL BEARING,17 mm ID x 40 mm OD x 12 mm
6	BEARING, BALL
7	BELLEVILLE WASHER,M16
8	SUPPORT
9	COVER
10	COMMUTATOR BRUSH
11	HUB
12	BALL BEARING,25 mm ID x 52 mm OD x 15 mm
12	BALL BEARING
13	CIRCLIP,M52, Int
13	CIRCLIP,M52, Int
14	BEARING HOUSING,52 mm ID x 150 mm OD x 41 mm
15	HUB
16	NUT,M10, Cl 8
17	BELLEVILLE WASHER,M10
18	BOLT,Hex, M10 x 30, 8.8, Full Thd
19	DRIVEN SPROCKET
20	BOLT,Hex, M16 x 170, 8.8
21	CHAIN
22	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
23	BELLEVILLE WASHER,M8
24	DRIVEN SPROCKET
25	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
26	ELECTRIC MOTOR
27	WIRE HARNESS
28	SUPPORT
29	SHIELD
29	SHIELD
30	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
31	BUSHING
32	RETAINING PLATE
33	WASHER,M16
34	NUT,M16 x 2, Cl 8
35	HYD CONNECTOR
35	HYD CONNECTOR
36	COVER PLATE
