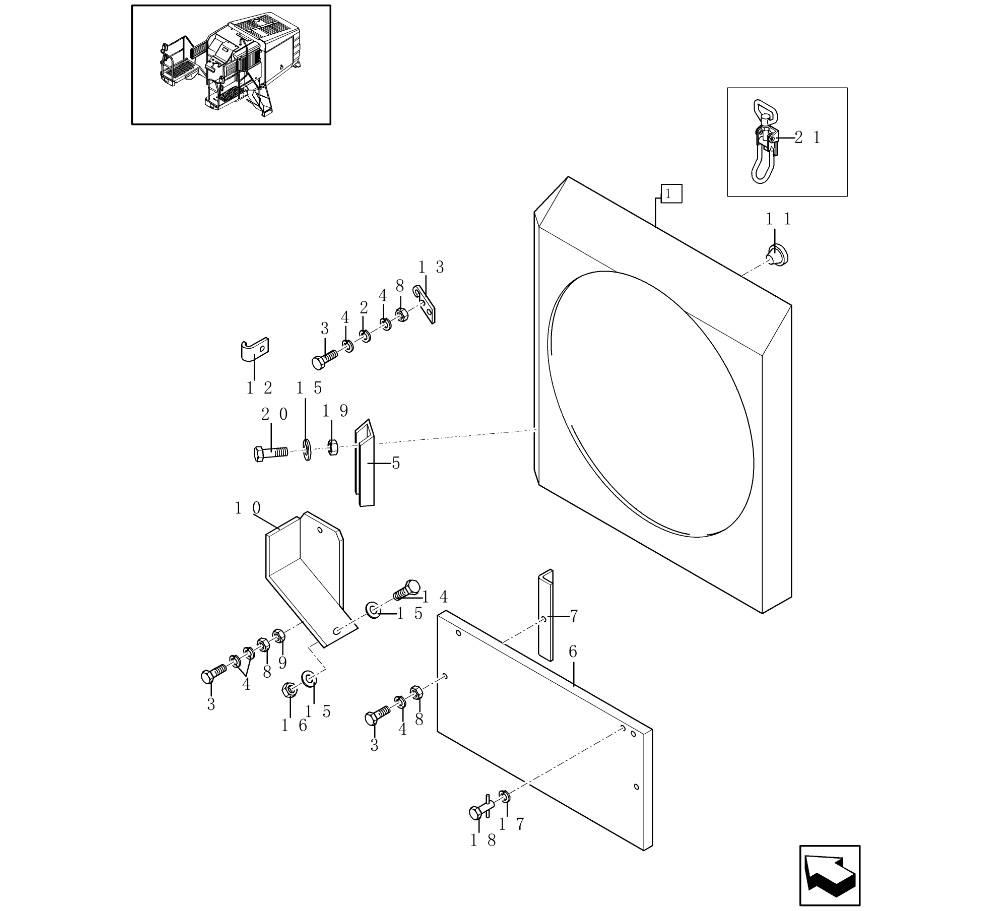

FX28 - (9/98-) Main Frame

Key

Ref	Description
1	DOOR
2	WASHER,M8
2	WASHER,M8 (pack of 10)
2	WASHER
3	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
4	BELLEVILLE WASHER,M8
5	HANDLE
5	HANDLE
6	SHIELD
7	BRACKET
8	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
9	NUT-M8 NYLOC
9	NUT,M8 x 1.25, Cl 8
10	COVER PLATE
11	PLUG
12	HOOK
12	HOOK
13	HOOK
14	BOLT,Hex, M6 x 20, 8.8
15	BELLEVILLE WASHER,M6
16	WING NUT,M6 x 1
17	LOCK WASHER,M9.8 x 18.5
18	LOCK
19	NUT M6 HEX
19	NUT,M6, Cl 10
20	BOLT,Hex, M6 x 16, 8.8
21	CLAMP

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX28 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84062270 DOOR for FX28/30/38/40/48/50/58/60 (21) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	378243 WASHER,M8 - this part has been superceded by 63707 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	63707 WASHER,M8 (pack of 10) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	86625263 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
3	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
4	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 20) In Stock Shipping Costs...	Call Ex VAT	1
5	89837395 HANDLE - this part has been superceded by 9837395 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	9837395 HANDLE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84057312 SHIELD - this part has been superceded by 87536647 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84002727 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
10	84002392 COVER PLATE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	331233 PLUG for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84074374 HOOK - this part has been superceded by 84429117 , Serial Range: -C177 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84429117 HOOK for FX28/30/38/40/48/50/58/60 , Start Serial: D178 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84023084 HOOK for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
15	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
16	84814892 WING NUT,M6 x 1 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
17	9514605 LOCK WASHER,M9.8 x 18.5 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
18	9514603 LOCK for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
19	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	120099 BOLT,Hex, M6 x 16, 8.8 - this part has been superceded by 86508568 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84043033 CLAMP for FX28/30/38/40/48/50/58/60 WELD-ON (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
