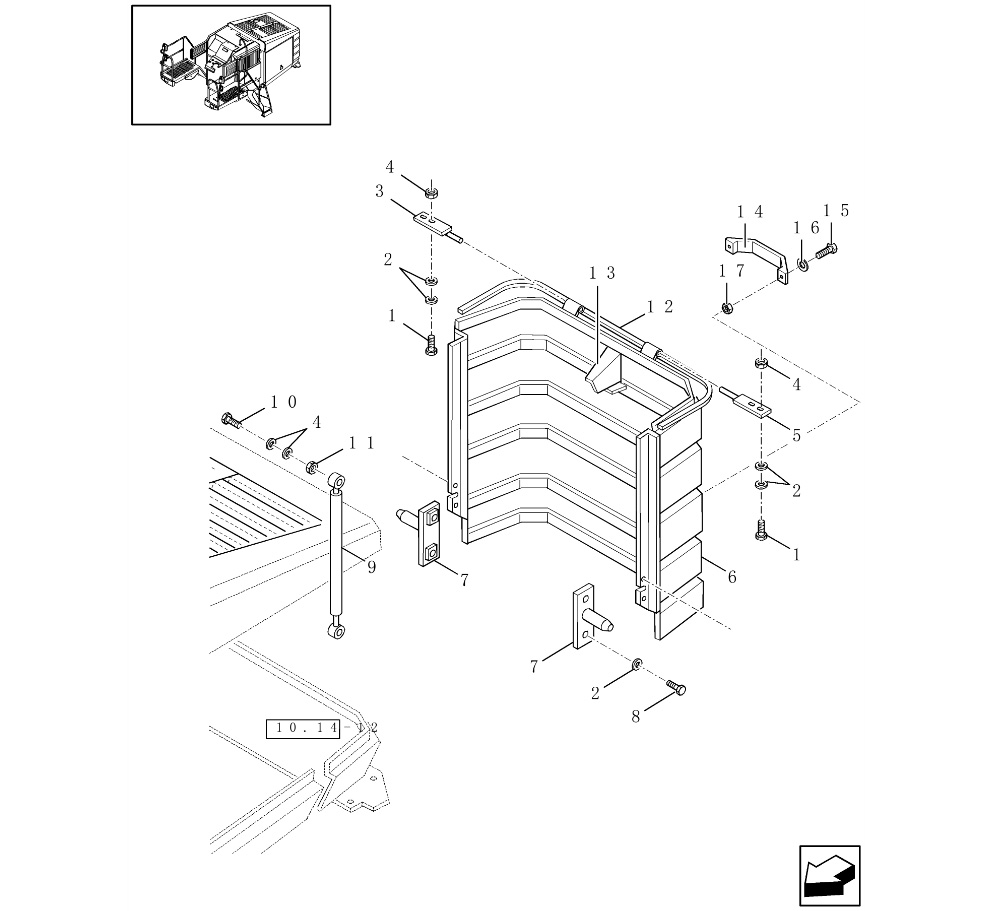

FX28 - (9/98-) Main Frame

Key

Ref	Description
1	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
2	BELLEVILLE WASHER,M8
3	HINGE
4	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
5	HINGE
6	GUARD
6	GUARD
6	GUARD
7	BRACKET
9	SHOCK ABSORBER
9	SHOCK ABSORBER
10	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
11	NUT-M8 NYLOC
11	NUT,M8 x 1.25, Cl 8
12	SEAL PROTECTION
13	SUPPORT
14	HANDLE
14	HANDLE
15	BOLT,Hex, M6 x 40, 8.8
16	BELLEVILLE WASHER,M6
17	NUT,M6, Cl 10
17	NUT M6 HEX
8	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX28 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
2	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 10) In Stock Shipping Costs...	Call Ex VAT	1
3	89812799 HINGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89812798 HINGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84052599 GUARD - this part has been superceded by 84433410 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84432131 GUARD - this part has been superceded by 84433410 , Serial Range: -F174217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84433410 GUARD for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84001228 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	89814770 SHOCK ABSORBER - this part has been superceded by 9814770 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9814770 SHOCK ABSORBER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
11	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
12	84056062 SEAL PROTECTION for all New Holland FX Forager Harvesters models L= 6000 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84057806 SUPPORT - this part has been superceded by 84437037 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	89837395 HANDLE - this part has been superceded by 9837395 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9837395 HANDLE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	43118 BOLT,Hex, M6 x 40, 8.8 - this part has been superceded by 120102 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
17	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
8	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
