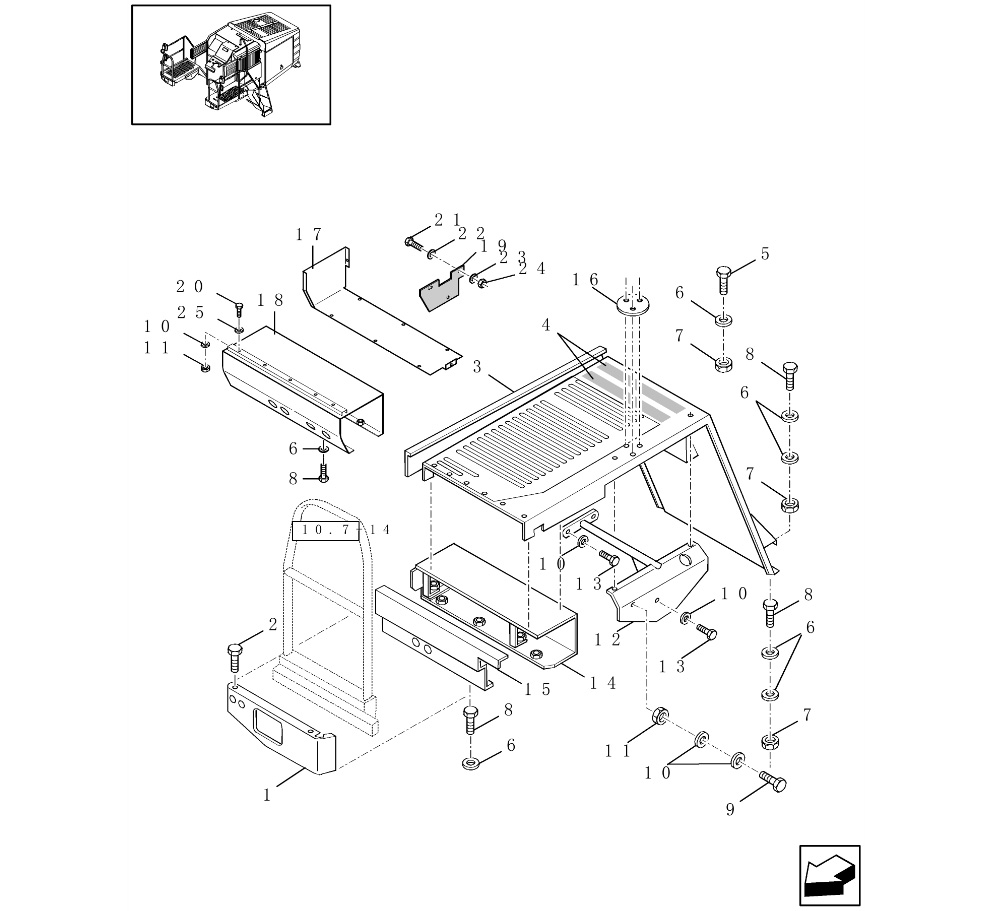

FX28 - (9/98-) Main Frame

Key

Ref	Description
1	PLATE
2	SCREW
3	PLATFORM
3	PLATFORM
4	ANTI-SKID STRIP
5	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
6	BELLEVILLE WASHER,M8
7	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
8	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
9	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
10	BELLEVILLE WASHER,M10
11	NUT,M10, Cl 8
12	SUPPORT
13	BOLT,Hex, M10 x 30, 8.8, Full Thd
14	COVER
15	SUPPORT
16	COVER
17	COVER
18	SUPPORT
19	RUBBER SEAL
19	RUBBER SEAL
20	BOLT,Hex, M10 x 40, 8.8, Full Thd
21	BOLT,Hex, M6 x 20, 8.8
22	WASHER,M6 x 22 x 2
23	BELLEVILLE WASHER,M6
24	NUT,M6, Cl 10
24	NUT M6 HEX
25	LOCK WASHER

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX28 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84001237 PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	N605772S36 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84002783 PLATFORM - this part has been superceded by 84432129 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84432129 PLATFORM for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	401502 ANTI-SKID STRIP for all New Holland FX Forager Harvesters models 51 mm x 18.3 Roll -, Serial Range: Cut-Size (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
6	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 15) In Stock Shipping Costs...	Call Ex VAT	1
7	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
9	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
11	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
12	84001730 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	10
14	84001878 COVER - this part has been superceded by 84432355 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84001735 SUPPORT - this part has been superceded by 84432458 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84038104 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84432355 COVER for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84432458 SUPPORT for FX28/38/48/58 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84432559 RUBBER SEAL for FX28/30/38/40/48/50/58/60 , Start Serial: D174,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84432333 RUBBER SEAL for FX28/30/38/40/48/50/58/60 , Start Serial: D174,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: AR) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
22	140040 WASHER,M6 x 22 x 2 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
24	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
25	140011 LOCK WASHER for FX28/30/38/40/48/50/58/60 10 MM (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
